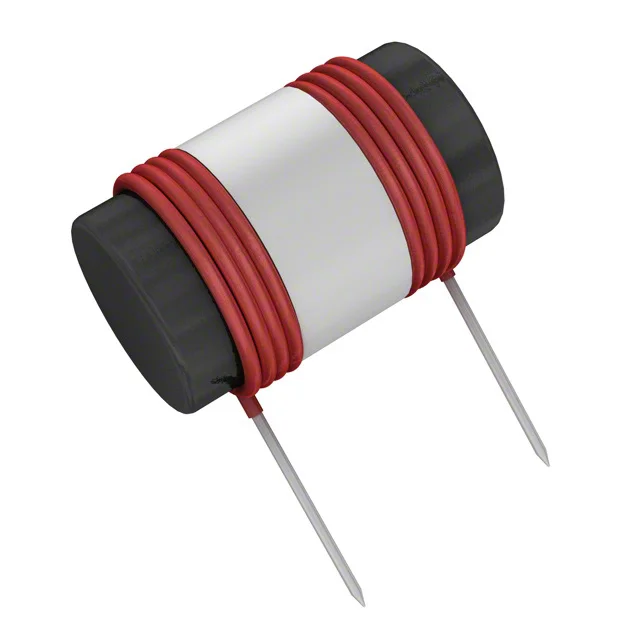

FIXED IND 500UH 3A 130 MOHM TH
| Inductance | 500 µH |
| Tolerance | ±10% |
| Current Rating | 3 A |
| DC Resistance (DCR) | 130mOhm Max |
| saturationCurrent | 1A |
| Operating Temperature | - |
| Dimensions | 0.950" Dia x 1.625" L (24.13mm x 41.28mm) |
| Case / Size | Radial, Horizontal Cylinder (Open) |
| Supplier | Delevan |
| Description | FIXED IND 500UH 3A 130 MOHM TH |
| Series | HC |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | - |
| features | https://www.digikey.com/en/products/detail/delevan/3HC-500/4192143 |
