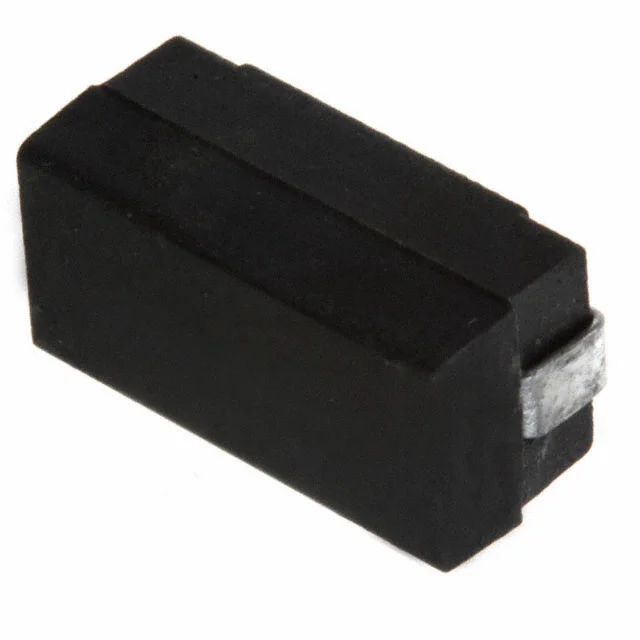

FIXED IND 10UH 610MA 900 MOHM
| Inductance | 10 µH |
| Tolerance | ±3% |
| Current Rating | 610 mA |
| DC Resistance (DCR) | 900mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.520" L x 0.250" W (13.21mm x 6.35mm) |
| Case / Size | Nonstandard |
| Supplier | Delevan |
| Description | FIXED IND 10UH 610MA 900 MOHM |
| Series | 5022 |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | Iron |
| shielding | Unshielded |
| qFactor | 55 @ 7.9MHz |
| selfResonantFreq | 45MHz |
| ratings | - |
| testFrequency | 7.9 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.230" (5.84mm) |
