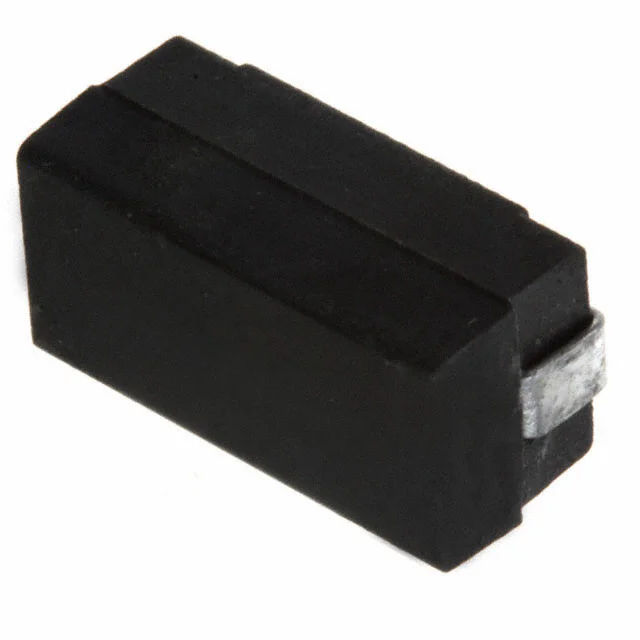

Description
FIXED IND 12UH 555MA 1.1 OHM SMD
Specifications
Inductance
12 µH
Current Rating
555 mA
DC Resistance (DCR)
1.1Ohm Max
Dimensions
0.520" L x 0.250" W (13.21mm x 6.35mm)
Product Attributes
Manufacturer Verified
Last verified: 6/15/2026| Inductance | 12 µH |
| Tolerance | ±5% |
| Current Rating | 555 mA |
| DC Resistance (DCR) | 1.1Ohm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.520" L x 0.250" W (13.21mm x 6.35mm) |
| Case / Size | Nonstandard |
| Supplier | Delevan |
| Description | FIXED IND 12UH 555MA 1.1 OHM SMD |
| Series | 5022 |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | Iron |
| shielding | Unshielded |
| qFactor | 65 @ 2.5MHz |
| selfResonantFreq | 42MHz |
| ratings | - |
| testFrequency | 2.5 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.230" (5.84mm) |
| features | https://www.digikey.com/en/products/detail/delevan/5022-123J/302247 |
