Description

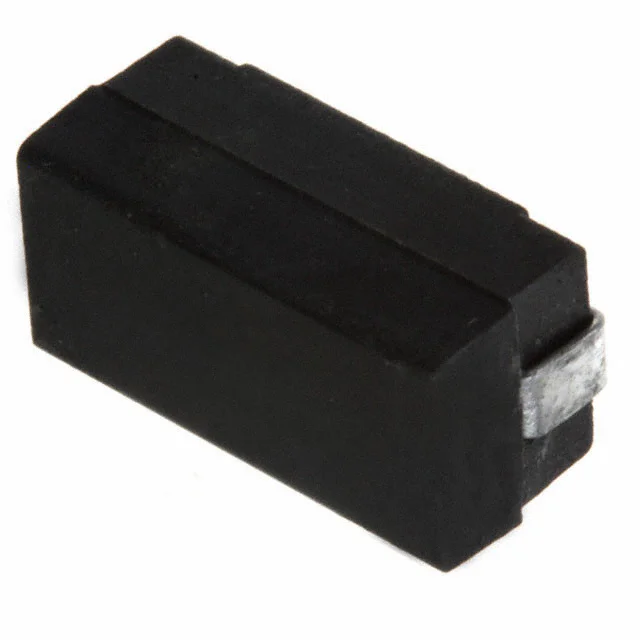

FIXED IND 56UH 335MA 3 OHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 5022-563G.
5022-563G has an inductance value of 56 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
5022-563G is rated for 335 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
5022-563G lists a DC resistance of 3Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
5022-563G uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 5022-563G to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 56 µH |
| Tolerance | ±2% |
| Current Rating | 335 mA |
| DC Resistance (DCR) | 3Ohm Max |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.520" L x 0.250" W (13.21mm x 6.35mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Delevan |
| Description | FIXED IND 56UH 335MA 3 OHM SMD |
| Series | 5022 |
| Product Status | Active |
| Core Material | Iron |
| Shielding | Unshielded |
| Q @ Frequency | 55 @ 2.5MHz |
| Self Resonant Frequency | 12MHz |
| Inductance Test Frequency | 2.5 MHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.230" (5.84mm) |
| Features | https://www.digikey.com/en/products/detail/delevan/5022-563G/4200689 |
