Description

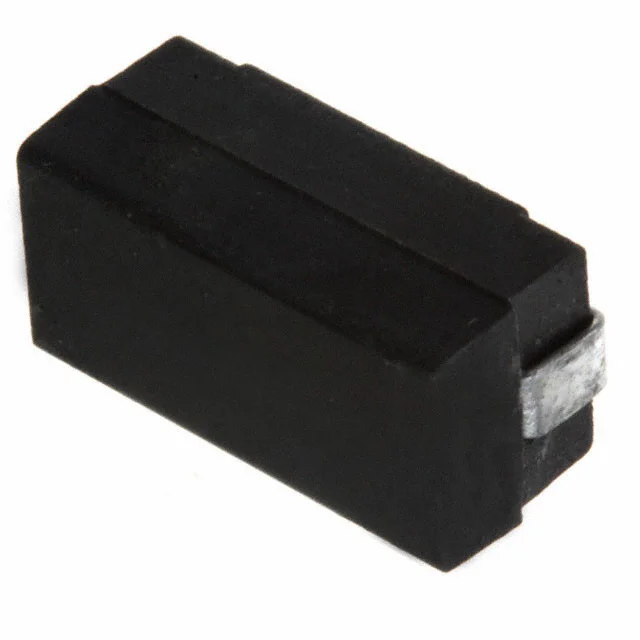

FIXED IND 300NH 2.14A 80 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 5022R-301H.
5022R-301H has an inductance value of 300 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
5022R-301H is rated for 2.14 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
5022R-301H lists a DC resistance of 80mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
5022R-301H uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 5022R-301H to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 300 nH |
| Tolerance | ±3% |
| Current Rating | 2.14 A |
| DC Resistance (DCR) | 80mOhm Max |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.520" L x 0.250" W (13.21mm x 6.35mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Delevan |
| Description | FIXED IND 300NH 2.14A 80 MOHM |
| Series | 5022R |
| Product Status | Active |
| Core Material | Phenolic |
| Shielding | Unshielded |
| Q @ Frequency | 45 @ 25MHz |
| Self Resonant Frequency | 380MHz |
| Inductance Test Frequency | 25 MHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.230" (5.84mm) |
| Features | https://www.digikey.com/en/products/detail/delevan/5022R-301H/4200917 |
