Description

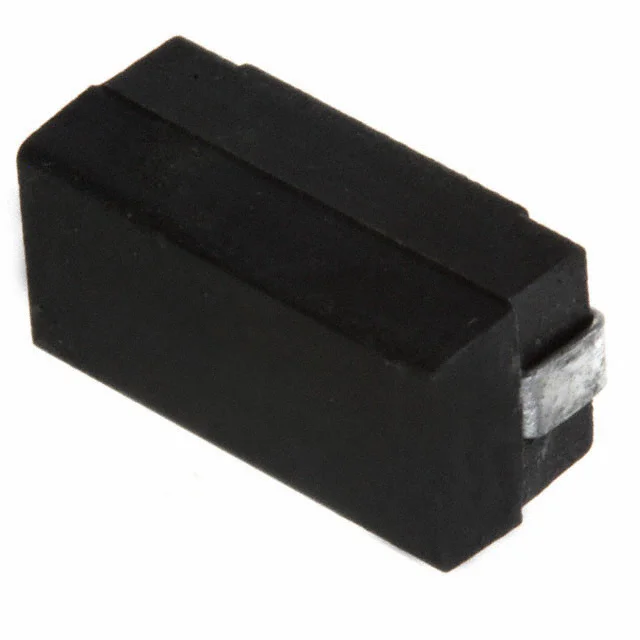

FIXED IND 560NH 1.645A 135 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 5022R-561J.
5022R-561J has an inductance value of 560 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
5022R-561J is rated for 1.645 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
5022R-561J lists a DC resistance of 135mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
5022R-561J uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 5022R-561J to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 560 nH |
| Tolerance | ±5% |
| Current Rating | 1.645 A |
| DC Resistance (DCR) | 135mOhm Max |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.520" L x 0.250" W (13.21mm x 6.35mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Delevan |
| Description | FIXED IND 560NH 1.645A 135 MOHM |
| Series | 5022R |
| Product Status | Active |
| Core Material | Phenolic |
| Shielding | Unshielded |
| Q @ Frequency | 50 @ 25MHz |
| Self Resonant Frequency | 280MHz |
| Inductance Test Frequency | 25 MHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.230" (5.84mm) |
| Features | https://www.digikey.com/en/products/detail/delevan/5022R-561J/4201030 |
