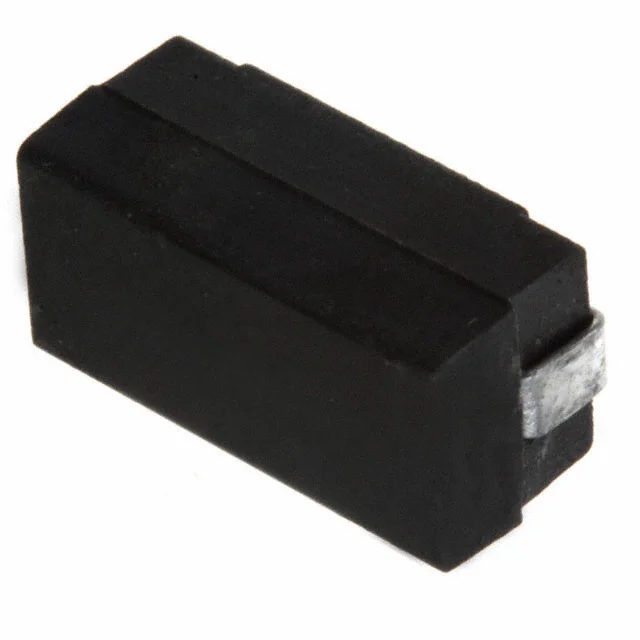

FIXED IND 560UH 136MA 19.5 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 5022R-564J.
5022R-564J has an inductance value of 560 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
5022R-564J is rated for 136 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
5022R-564J lists a DC resistance of 19.5Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
5022R-564J uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 5022R-564J to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 560 µH |
| Tolerance | ±5% |
| Current Rating | 136 mA |
| DC Resistance (DCR) | 19.5Ohm Max |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.520" L x 0.250" W (13.21mm x 6.35mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Delevan |
| Description | FIXED IND 560UH 136MA 19.5 OHM |
| Series | 5022R |
| Product Status | Active |
| Core Material | Iron |
| Shielding | Unshielded |
| Q @ Frequency | 65 @ 790kHz |
| Self Resonant Frequency | 3.8MHz |
| Inductance Test Frequency | 790 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.230" (5.84mm) |
| Features | https://www.digikey.com/en/products/detail/delevan/5022R-564J/4201042 |
