Description

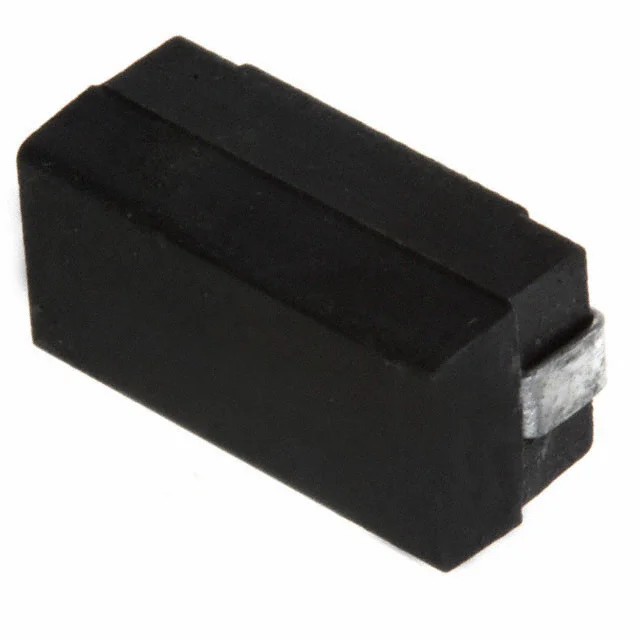

FIXED IND 680UH 116MA 27.2 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 5022R-684H.
5022R-684H has an inductance value of 680 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
5022R-684H is rated for 116 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
5022R-684H lists a DC resistance of 27.2Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
5022R-684H uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 5022R-684H to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 680 µH |
| Tolerance | ±3% |
| Current Rating | 116 mA |
| DC Resistance (DCR) | 27.2Ohm Max |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.520" L x 0.250" W (13.21mm x 6.35mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Delevan |
| Description | FIXED IND 680UH 116MA 27.2 OHM |
| Series | 5022R |
| Product Status | Active |
| Core Material | Iron |
| Shielding | Unshielded |
| Q @ Frequency | 65 @ 790kHz |
| Self Resonant Frequency | 3.1MHz |
| Inductance Test Frequency | 790 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.230" (5.84mm) |
