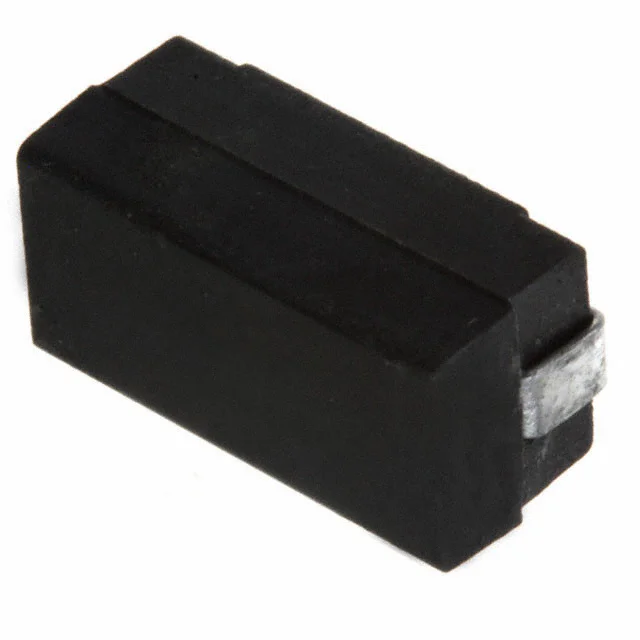

FIXED IND 7.5UH 765MA 550 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 5022R-752G.
5022R-752G has an inductance value of 7.5 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
5022R-752G is rated for 765 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
5022R-752G lists a DC resistance of 550mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
5022R-752G uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 5022R-752G to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 7.5 µH |
| Tolerance | ±2% |
| Current Rating | 765 mA |
| DC Resistance (DCR) | 550mOhm Max |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.520" L x 0.250" W (13.21mm x 6.35mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Delevan |
| Description | FIXED IND 7.5UH 765MA 550 MOHM |
| Series | 5022R |
| Product Status | Active |
| Core Material | Iron |
| Shielding | Unshielded |
| Q @ Frequency | 50 @ 7.9MHz |
| Self Resonant Frequency | 55MHz |
| Inductance Test Frequency | 7.9 MHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.230" (5.84mm) |
| Features | https://www.digikey.com/en/products/detail/delevan/5022R-752G/4201080 |
