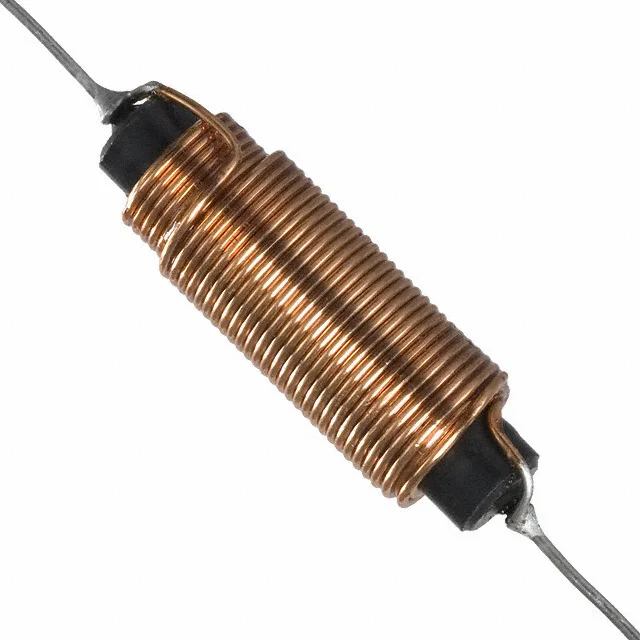

FIXED IND 68UH 5A 54 MOHM TH
| Inductance | 68 µH |
| Tolerance | ±20% |
| Current Rating | 5 A |
| DC Resistance (DCR) | 54mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.560" Dia x 1.250" L (14.22mm x 31.75mm) |
| Case / Size | Axial |
| Supplier | Bourns Inc. |
| Description | FIXED IND 68UH 5A 54 MOHM TH |
| Series | 5200 |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | 4.5MHz |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | - |
| features | - |
