Description

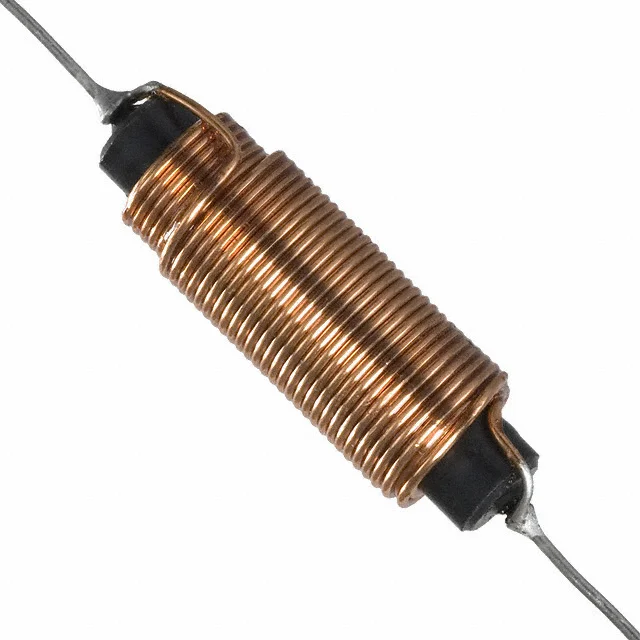

FIXED IND 125UH 3.5A 80 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 5252.
5252 has an inductance value of 125 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
5252 is rated for 3.5 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
5252 lists a DC resistance of 80mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
5252 uses a package or case of Axial. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 5252 to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 125 µH |
| Tolerance | ±20% |
| Current Rating | 3.5 A |
| DC Resistance (DCR) | 80mOhm Max |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.500" Dia x 1.250" L (12.70mm x 31.75mm) |
| Case / Size | Axial |
| Package / Case | Axial |
| Supplier | Bourns Inc. |
| Description | FIXED IND 125UH 3.5A 80 MOHM TH |
| Series | 5200 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Self Resonant Frequency | 2.25MHz |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
