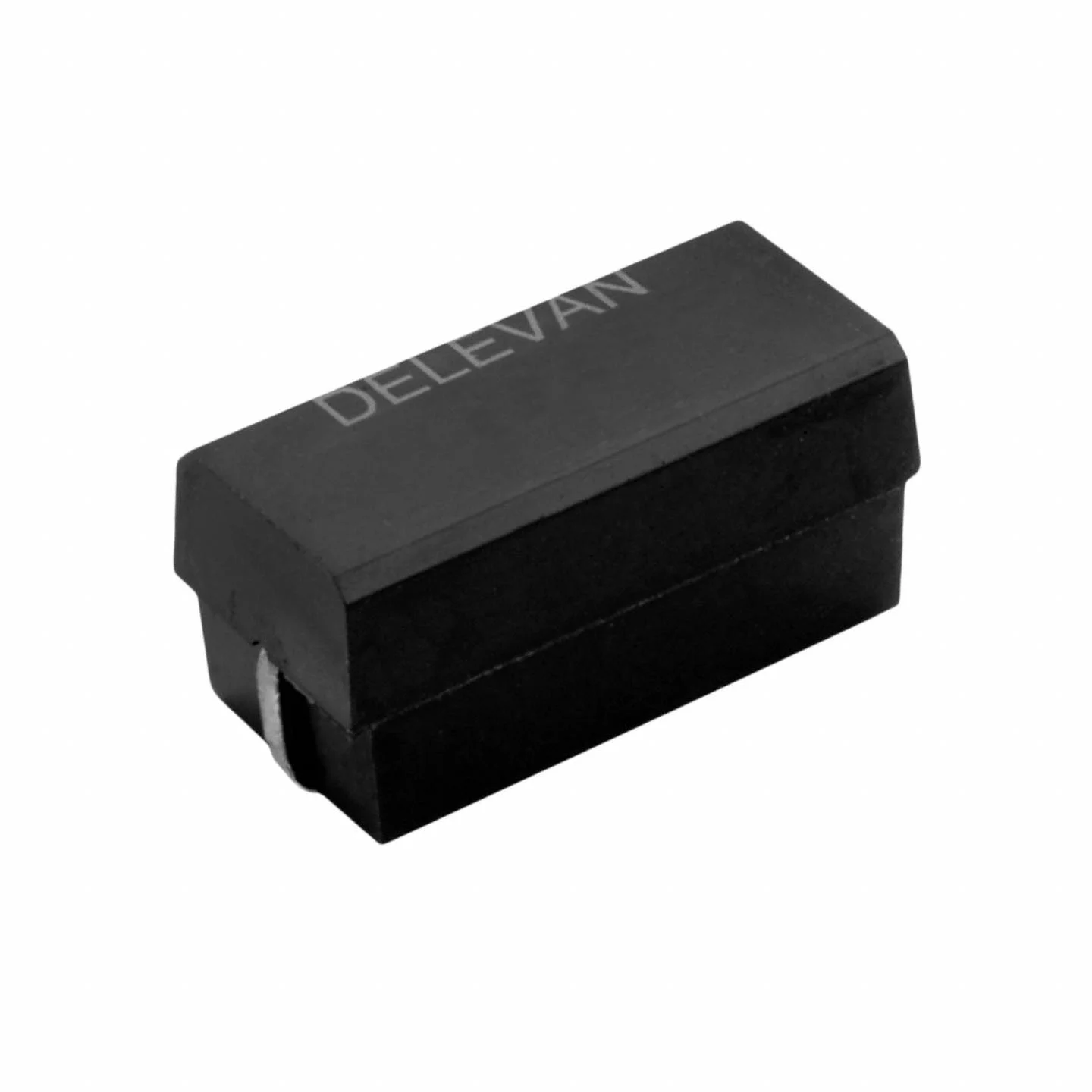

FIXED IND 12MH 330MA 9.34 OHM
| Inductance | 12 mH |
| Tolerance | ±10% |
| Current Rating | 330 mA |
| DC Resistance (DCR) | 9.34Ohm Max |
| saturationCurrent | 160mA |
| Operating Temperature | -55°C ~ 130°C |
| Dimensions | 1.050" L x 0.495" W (26.67mm x 12.57mm) |
| Case / Size | Nonstandard |
| Supplier | Delevan |
| Description | FIXED IND 12MH 330MA 9.34 OHM |
| Series | 5500R |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.520" (13.21mm) |
| features | - |
