Description

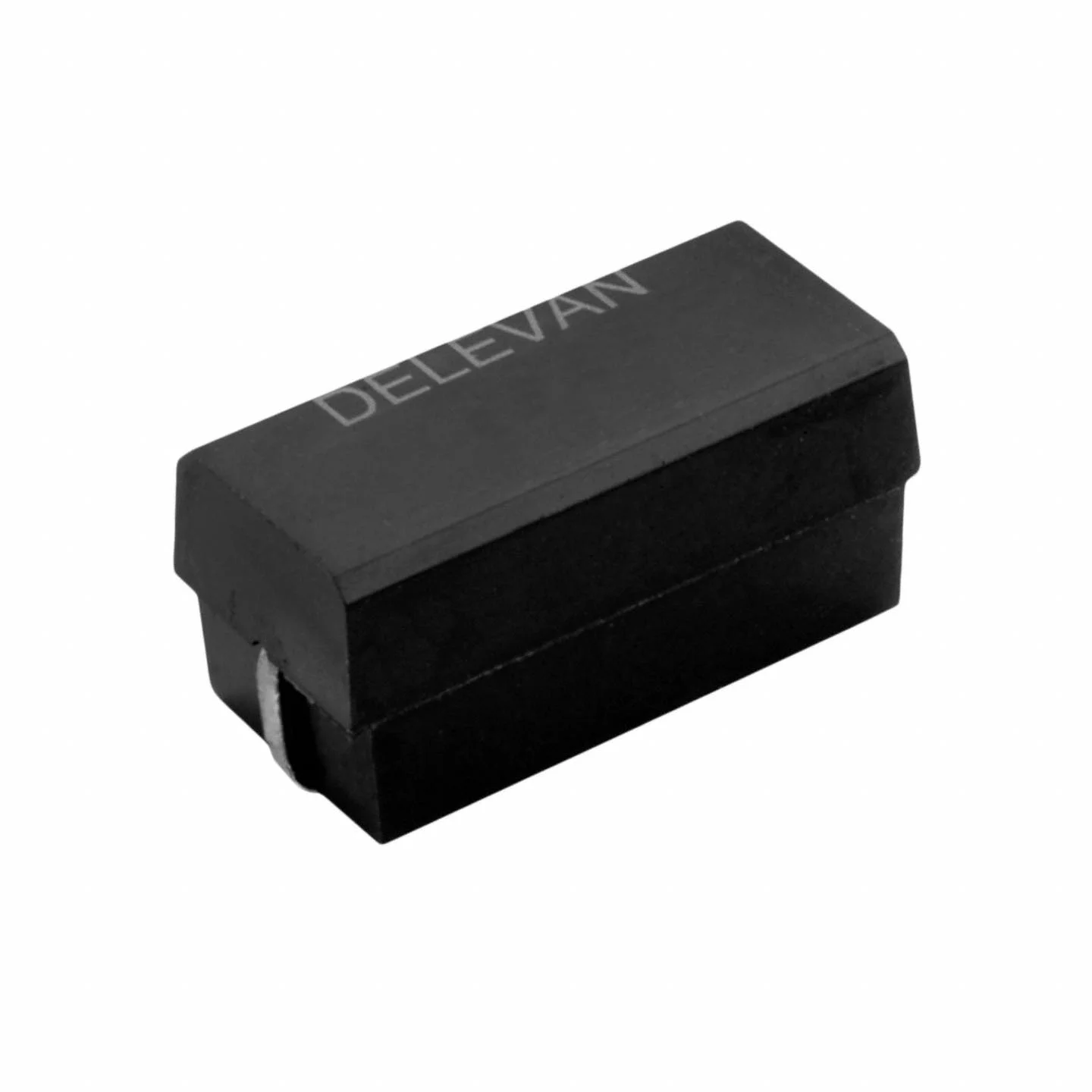

FIXED IND 56MH 160MA 38 OHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 5500R-566K.
5500R-566K has an inductance value of 56 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
5500R-566K is rated for 160 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
5500R-566K lists a DC resistance of 38Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
5500R-566K uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 5500R-566K to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 56 mH |
| Tolerance | ±10% |
| Current Rating | 160 mA |
| DC Resistance (DCR) | 38Ohm Max |
| Saturation Current | 70mA |
| Operating Temperature | -55°C ~ 130°C |
| Dimensions | 1.050" L x 0.495" W (26.67mm x 12.57mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Delevan |
| Description | FIXED IND 56MH 160MA 38 OHM SMD |
| Series | 5500R |
| Product Status | Active |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.520" (13.21mm) |
