Description

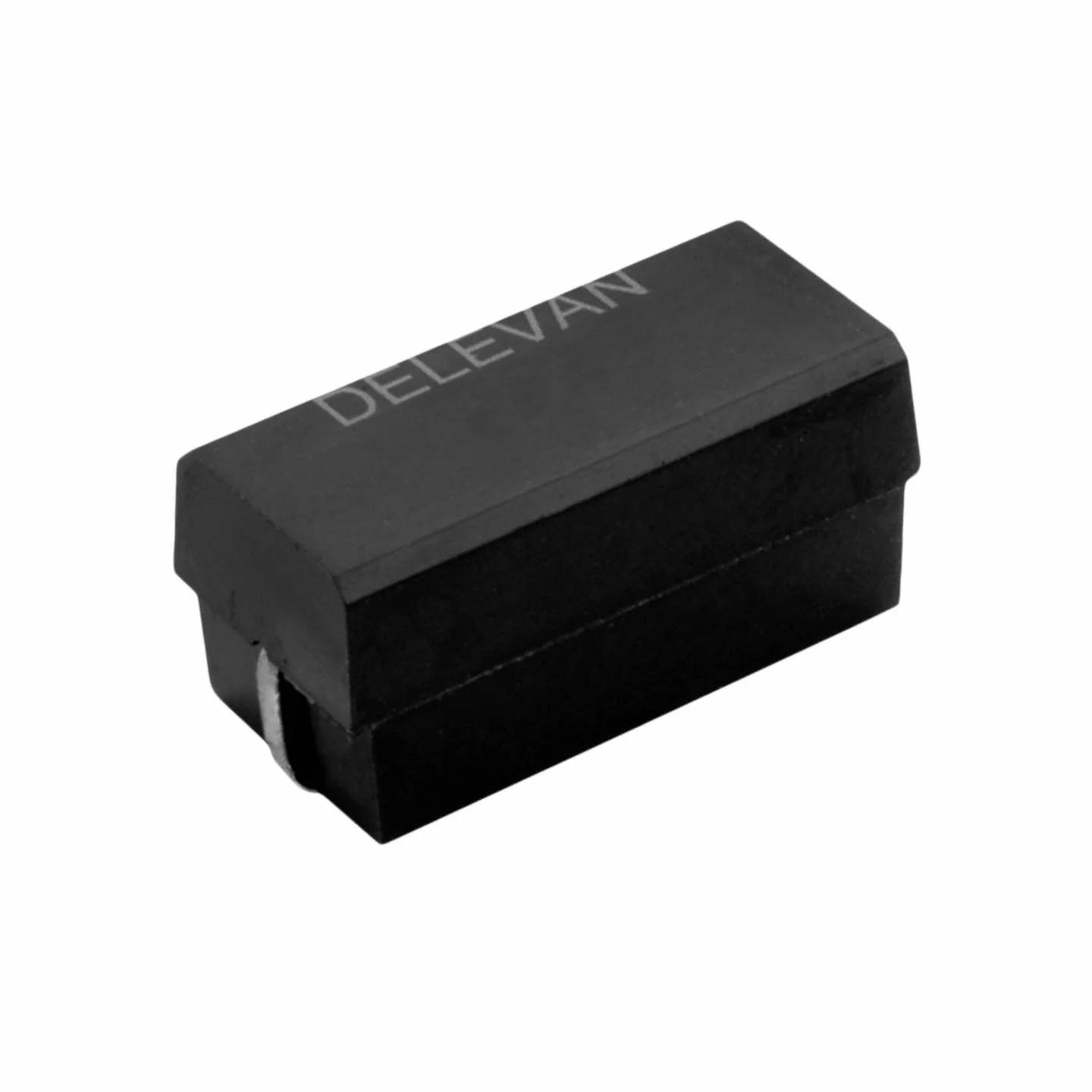

FIXED IND 8.2MH 390MA 6.44 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 5500R-825K.
5500R-825K has an inductance value of 8.2 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
5500R-825K is rated for 390 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
5500R-825K lists a DC resistance of 6.44Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
5500R-825K uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 5500R-825K to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 8.2 mH |
| Tolerance | ±10% |
| Current Rating | 390 mA |
| DC Resistance (DCR) | 6.44Ohm Max |
| Saturation Current | 190mA |
| Operating Temperature | -55°C ~ 130°C |
| Dimensions | 1.050" L x 0.495" W (26.67mm x 12.57mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Delevan |
| Description | FIXED IND 8.2MH 390MA 6.44 OHM |
| Series | 5500R |
| Product Status | Active |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.520" (13.21mm) |
