Description

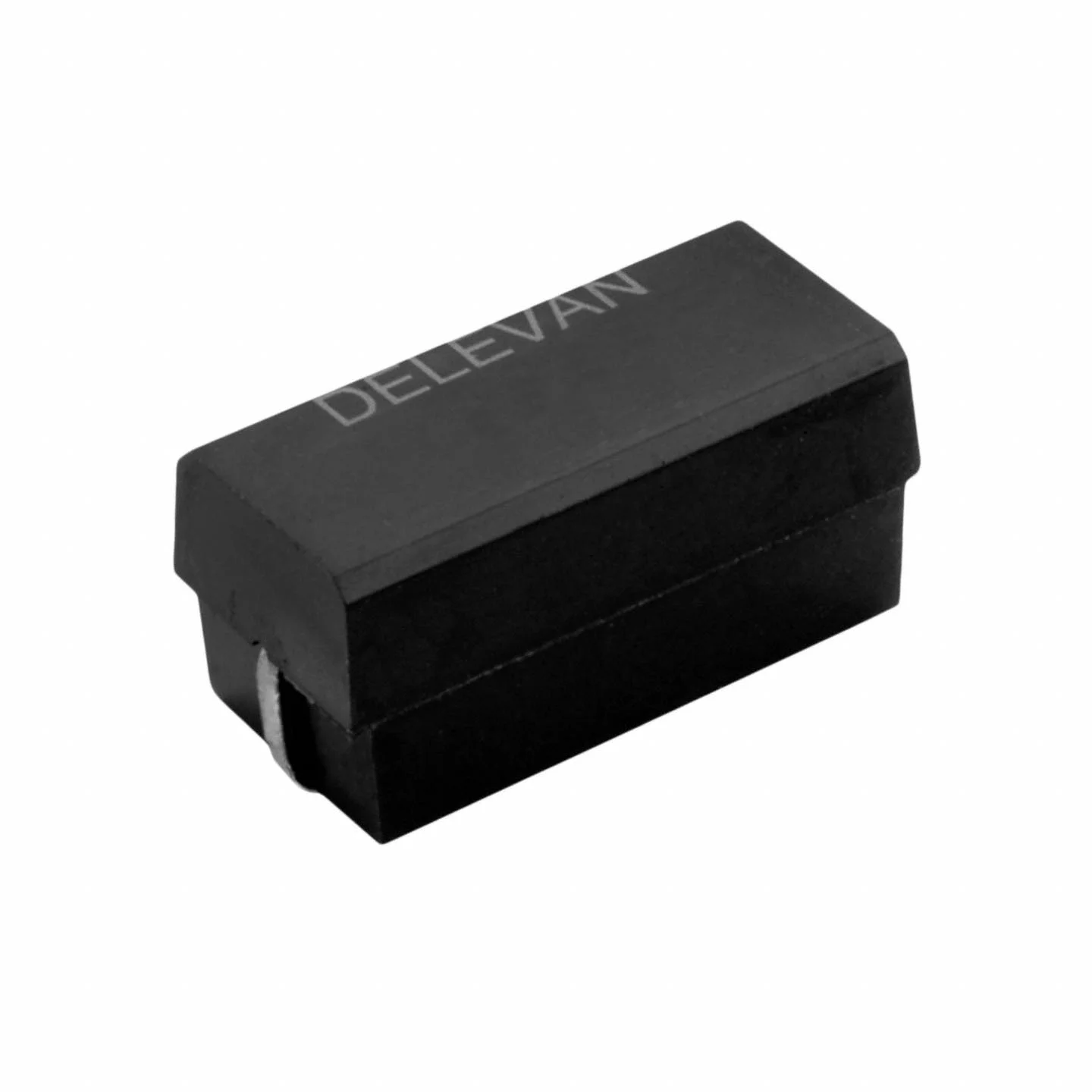

FIXED IND 82MH 120MA 67.3 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 5500R-826K.
5500R-826K has an inductance value of 82 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
5500R-826K is rated for 120 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
5500R-826K lists a DC resistance of 67.3Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
5500R-826K uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 5500R-826K to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 82 mH |
| Tolerance | ±10% |
| Current Rating | 120 mA |
| DC Resistance (DCR) | 67.3Ohm Max |
| Saturation Current | 60mA |
| Operating Temperature | -55°C ~ 130°C |
| Dimensions | 1.050" L x 0.495" W (26.67mm x 12.57mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Delevan |
| Description | FIXED IND 82MH 120MA 67.3 OHM |
| Series | 5500R |
| Product Status | Active |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.520" (13.21mm) |
