Description

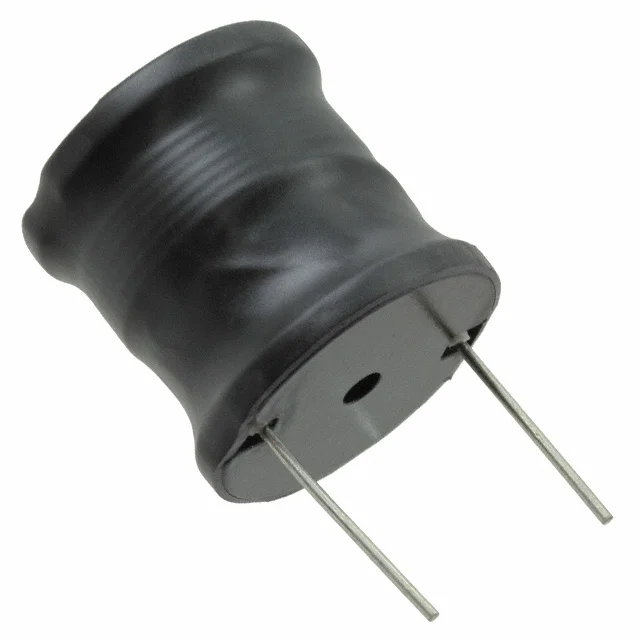

FIXED IND 500UH 2A 378 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 5607-RC.
5607-RC has an inductance value of 500 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
5607-RC is rated for 2 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
5607-RC lists a DC resistance of 378mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
5607-RC uses a package or case of Radial, Vertical Cylinder. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 5607-RC to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 500 µH |
| Tolerance | ±10% |
| Current Rating | 2 A |
| DC Resistance (DCR) | 378mOhm Max |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.830" Dia (21.08mm) |
| Case / Size | Radial, Vertical Cylinder |
| Package / Case | Radial, Vertical Cylinder |
| Supplier | Bourns Inc. |
| Description | FIXED IND 500UH 2A 378 MOHM TH |
| Series | 5600 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.910" (23.11mm) |
