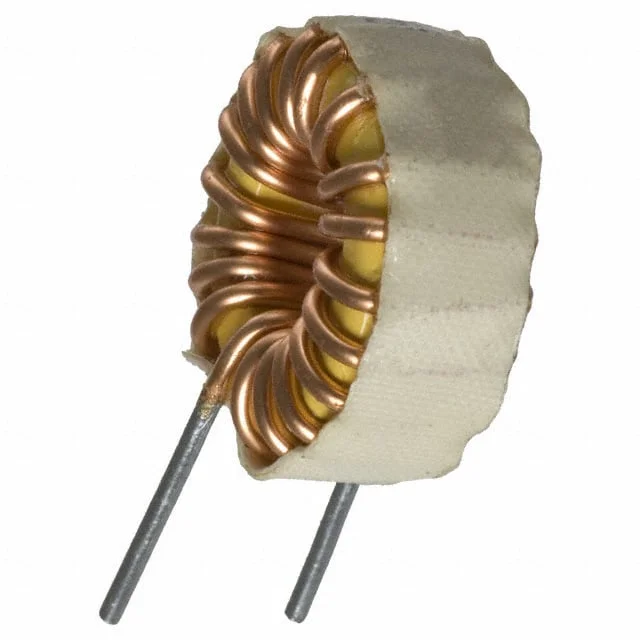

FIXED IND 1.6MH 1.5A 1.27 OHM TH
| Inductance | 1.6 mH |
| Tolerance | ±15% |
| Current Rating | 1.5 A |
| DC Resistance (DCR) | 1.27Ohm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 1.250" Dia x 0.625" W (31.75mm x 15.88mm) |
| Case / Size | Radial, Vertical (Open) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1.6MH 1.5A 1.27 OHM TH |
| Series | 5700 |
| productStatus | Active |
| typeConstruction | Toroidal |
| coreMaterial | Iron Powder |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | - |
| features | - |
