Description

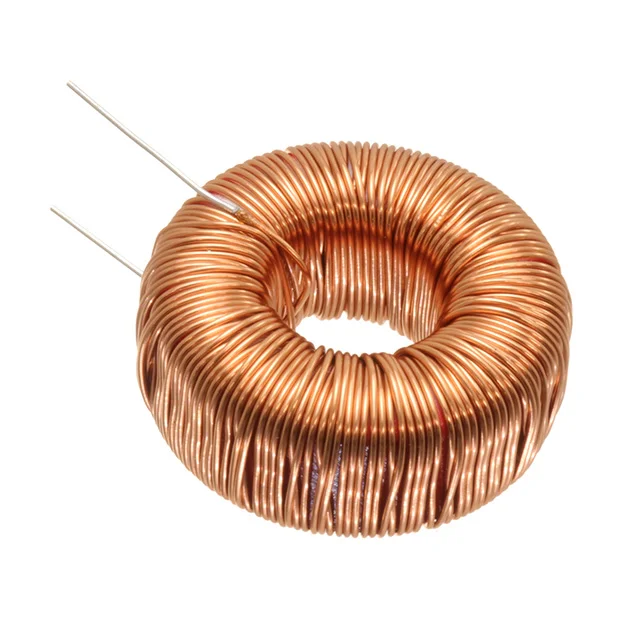

FIXED IND 1.619MH 1.8A 480 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 7441110.
7441110 has an inductance value of 1.619 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
7441110 is rated for 1.8 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
7441110 lists a DC resistance of 480mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
7441110 uses a package or case of Radial, Vertical (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 7441110 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 1.619 mH |
| Tolerance | ±20% |
| Current Rating | 1.8 A |
| DC Resistance (DCR) | 480mOhm Max |
| Saturation Current | 700mA |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 1.181" Dia x 0.571" W (30.00mm x 14.50mm) |
| Case / Size | Radial, Vertical (Open) |
| Package / Case | Radial, Vertical (Open) |
| Supplier | Würth Elektronik |
| Description | FIXED IND 1.619MH 1.8A 480 MOHM |
| Series | WE-SI |
| Product Status | Active |
| Type / Construction | Toroidal |
| Core Material | Iron Powder |
| Shielding | Shielded |
| Self Resonant Frequency | 500kHz |
| Inductance Test Frequency | 10 kHz |
| Mounting Type | Through Hole |
