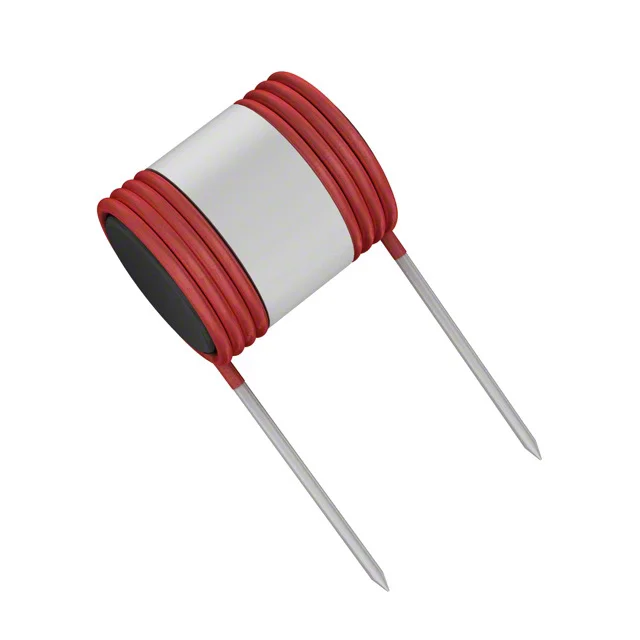

Description
FIXED IND 5UH 5A 12 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 5HC-5.
5HC-5 has an inductance value of 5 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
5HC-5 is rated for 5 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
5HC-5 lists a DC resistance of 12mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
5HC-5 uses a package or case of Radial, Horizontal Cylinder (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 5HC-5 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 5 µH |
| Tolerance | ±10% |
| Current Rating | 5 A |
| DC Resistance (DCR) | 12mOhm Max |
| Saturation Current | 20A |
| Dimensions | 0.640" Dia x 0.875" L (16.26mm x 22.23mm) |
| Case / Size | Radial, Horizontal Cylinder (Open) |
| Package / Case | Radial, Horizontal Cylinder (Open) |
| Supplier | Delevan |
| Description | FIXED IND 5UH 5A 12 MOHM TH |
| Series | HC |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
