Description

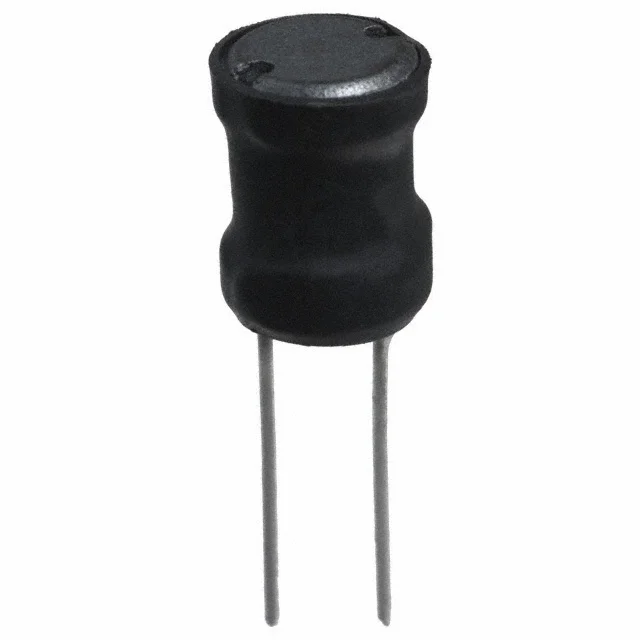

FIXED IND 470UH 680MA 1.1 OHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 6000-471K.
6000-471K has an inductance value of 470 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
6000-471K is rated for 680 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
6000-471K lists a DC resistance of 1.1Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
6000-471K uses a package or case of Radial, Vertical Cylinder. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 6000-471K to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 470 µH |
| Tolerance | ±10% |
| Current Rating | 680 mA |
| DC Resistance (DCR) | 1.1Ohm Max |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.354" Dia (9.00mm) |
| Case / Size | Radial, Vertical Cylinder |
| Package / Case | Radial, Vertical Cylinder |
| Supplier | Bourns Inc. |
| Description | FIXED IND 470UH 680MA 1.1 OHM TH |
| Series | 6000 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 20 @ 796kHz |
| Self Resonant Frequency | 1.9MHz |
| Inductance Test Frequency | 796 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.480" (12.20mm) |
