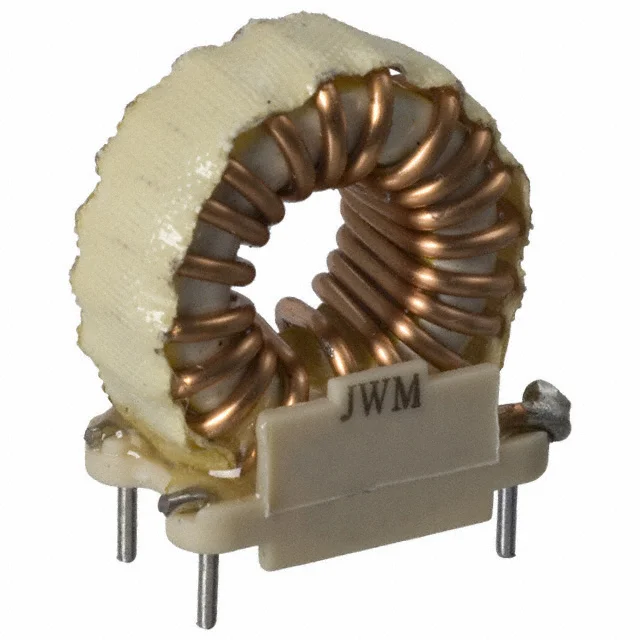

FIXED IND 25UH 5.5A 14 MOHM TH
| Inductance | 25 µH |
| Tolerance | ±15% |
| Current Rating | 5.5 A |
| DC Resistance (DCR) | 14mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.875" L x 0.425" W (22.22mm x 10.80mm) |
| Case / Size | Radial, Vertical, 4 Leads (Open) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 25UH 5.5A 14 MOHM TH |
| Series | 6700 |
| productStatus | Obsolete |
| typeConstruction | Toroidal |
| coreMaterial | Iron Powder |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 1.000" (25.40mm) |
| features | - |
