Description

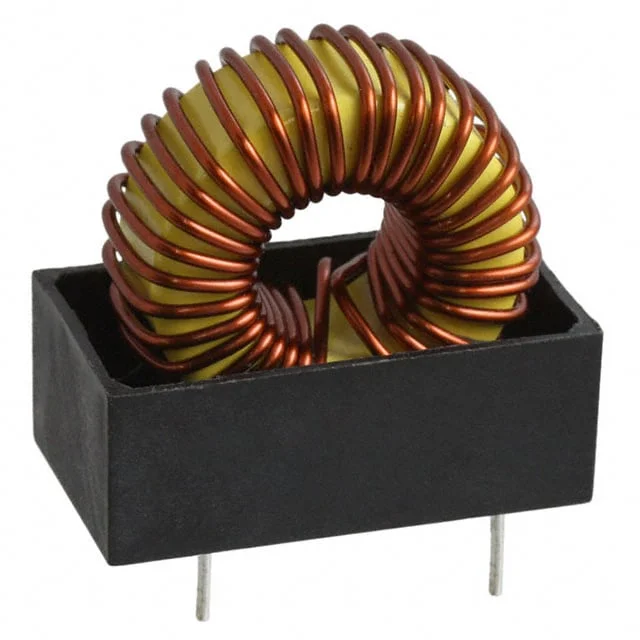

FIXED IND 23UH 11A 12 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PE-51510NL.
PE-51510NL has an inductance value of 23 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PE-51510NL is rated for 11 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PE-51510NL lists a DC resistance of 12mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PE-51510NL uses a package or case of Radial, Vertical, 4 Leads (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PE-51510NL to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 23 µH |
| Current Rating | 11 A |
| DC Resistance (DCR) | 12mOhm Max |
| Operating Temperature | -40°C ~ 130°C |
| Dimensions | 1.440" L x 0.800" W (36.57mm x 20.32mm) |
| Case / Size | Radial, Vertical, 4 Leads (Open) |
| Package / Case | Radial, Vertical, 4 Leads (Open) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 23UH 11A 12 MOHM TH |
| Product Status | Active |
| Type / Construction | Toroidal |
| Shielding | Unshielded |
| Inductance Test Frequency | 50 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 1.440" (36.57mm) |
