Description

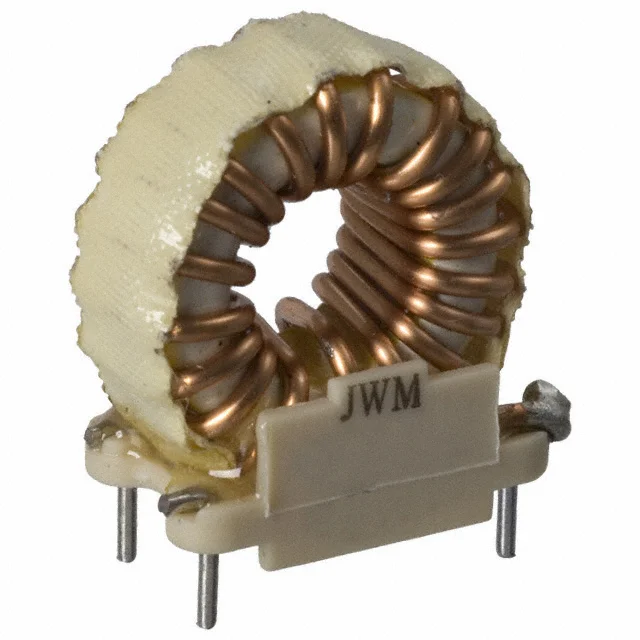

FIXED IND 35UH 2.5A 35 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 6727.
6727 has an inductance value of 35 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
6727 is rated for 2.5 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
6727 lists a DC resistance of 35mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
6727 uses a package or case of Radial, Vertical, 4 Leads (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 6727 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 35 µH |
| Tolerance | ±15% |
| Current Rating | 2.5 A |
| DC Resistance (DCR) | 35mOhm Max |
| Saturation Current | - |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.700" L x 0.425" W (17.78mm x 10.80mm) |
| Case / Size | Radial, Vertical, 4 Leads (Open) |
| Package / Case | Radial, Vertical, 4 Leads (Open) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 35UH 2.5A 35 MOHM TH |
| Series | 6700 |
| Product Status | Obsolete |
| Type / Construction | Toroidal |
| Core Material | Iron Powder |
| Shielding | Shielded |
| Q @ Frequency | - |
| Self Resonant Frequency | - |
| Ratings | - |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
| Supplier Device Package | - |
| Height - Seated (Max) | 1.000" (25.40mm) |
| Features | - |
