Description

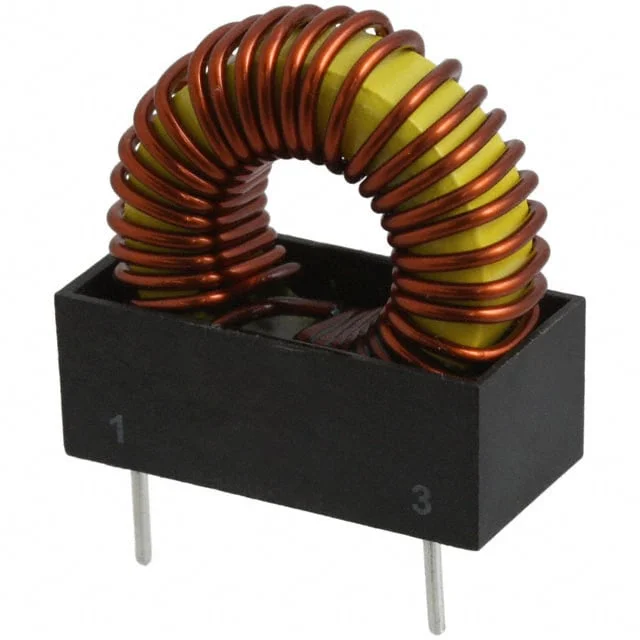

FIXED IND 32UH 6.6A 25 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PE-51514.
PE-51514 has an inductance value of 32 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PE-51514 is rated for 6.6 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PE-51514 lists a DC resistance of 25mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PE-51514 uses a package or case of Radial, Vertical, 4 Leads (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PE-51514 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 32 µH |
| Tolerance | - |
| Current Rating | 6.6 A |
| DC Resistance (DCR) | 25mOhm Max |
| Saturation Current | - |
| Operating Temperature | -40°C ~ 130°C |
| Dimensions | 1.200" L x 0.600" W (30.48mm x 15.24mm) |
| Case / Size | Radial, Vertical, 4 Leads (Open) |
| Package / Case | Radial, Vertical, 4 Leads (Open) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 32UH 6.6A 25 MOHM TH |
| Series | - |
| Product Status | Obsolete |
| Type / Construction | Toroidal |
| Core Material | - |
| Shielding | Unshielded |
| Q @ Frequency | - |
| Self Resonant Frequency | - |
| Ratings | - |
| Inductance Test Frequency | 50 kHz |
| Mounting Type | Through Hole |
| Supplier Device Package | - |
| Height - Seated (Max) | 1.200" (30.48mm) |
| Features | - |
