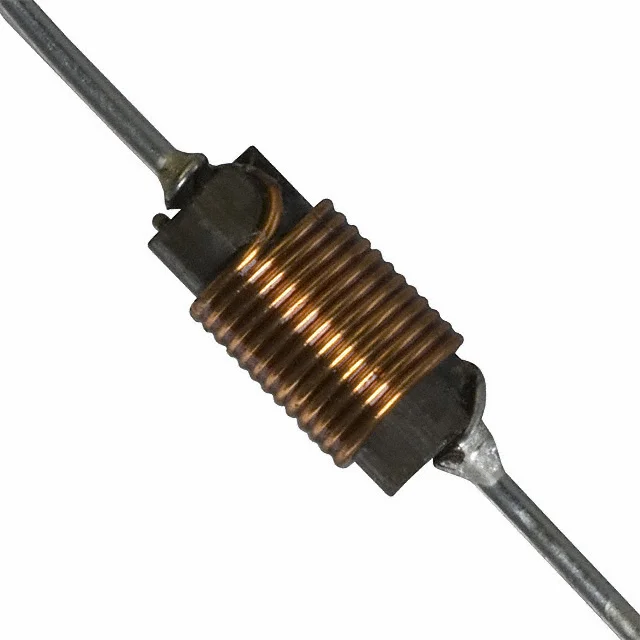

Description
FIXED IND 1UH 2.041A 48 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 70F106AI-RC.
70F106AI-RC has an inductance value of 1 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
70F106AI-RC is rated for 2.041 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
70F106AI-RC lists a DC resistance of 48mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
70F106AI-RC uses a package or case of Axial. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 70F106AI-RC to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating | 2.041 A |
| DC Resistance (DCR) | 48mOhm Max |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) |
| Case / Size | Axial |
| Package / Case | Axial |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1UH 2.041A 48 MOHM TH |
| Series | 70F |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Iron |
| Shielding | Unshielded |
| Q @ Frequency | 41 @ 25MHz |
| Self Resonant Frequency | 118MHz |
| Inductance Test Frequency | 25 MHz |
| Mounting Type | Through Hole |
