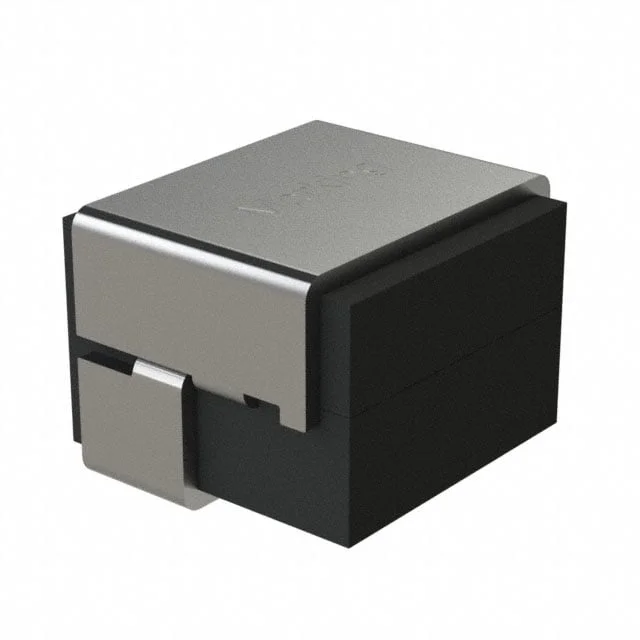

Description
FIXED IND 620NH 34A 0.42 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 7443091062.
7443091062 has an inductance value of 620 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
7443091062 is rated for 34 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
7443091062 lists a DC resistance of 0.42mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
7443091062 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 7443091062 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 620 nH |
| Tolerance | ±20% |
| Current Rating | 34 A |
| DC Resistance (DCR) | 0.42mOhm |
| Saturation Current | 74A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.571" L x 0.531" W (14.50mm x 13.50mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 620NH 34A 0.42 MOHM |
| Series | WE-HCM |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Manganese Zinc Ferrite (MnZn) |
| Shielding | Shielded |
| Self Resonant Frequency | 25MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1411 |
| Height - Seated (Max) | 0.421" (10.70mm) |
