Description

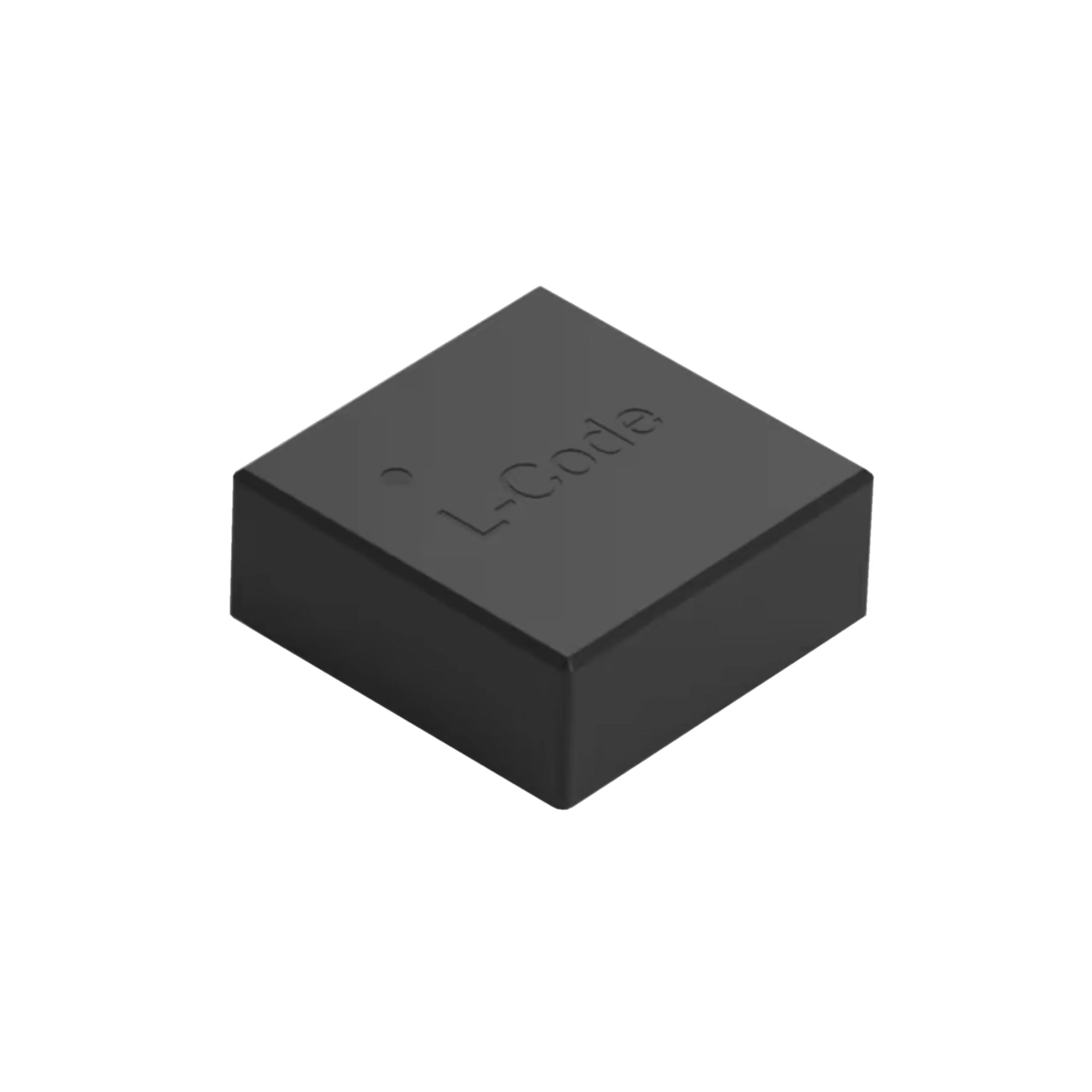

FIXED IND 680NH 12.6A 9.63 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 744393230068.
744393230068 has an inductance value of 680 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
744393230068 is rated for 12.6 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
744393230068 lists a DC resistance of 9.63mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
744393230068 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 744393230068 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 680 nH |
| Tolerance | ±20% |
| Current Rating | 12.6 A |
| DC Resistance (DCR) | 9.63mOhm Max |
| Saturation Current | 11.8A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 680NH 12.6A 9.63 MOHM |
| Series | WE-XHMI |
| Product Status | Active |
| Type / Construction | Molded |
| Core Material | Metal Composite |
| Shielding | Shielded |
| Self Resonant Frequency | 80MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.087" (2.20mm) |
