Description
FIXED IND 35UH 3A 25 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 7447015.
7447015 has an inductance value of 35 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
7447015 is rated for 3 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
7447015 lists a DC resistance of 25mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
7447015 uses a package or case of Radial, Vertical (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 7447015 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 35 µH |
| Tolerance | ±20% |
| Current Rating | 3 A |
| DC Resistance (DCR) | 25mOhm Max |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.728" Dia x 0.335" W (18.50mm x 8.50mm) |
| Case / Size | Radial, Vertical (Open) |
| Package / Case | Radial, Vertical (Open) |
| Supplier | Würth Elektronik |
| Description | FIXED IND 35UH 3A 25 MOHM TH |
| Series | WE-FI |
| Product Status | Active |

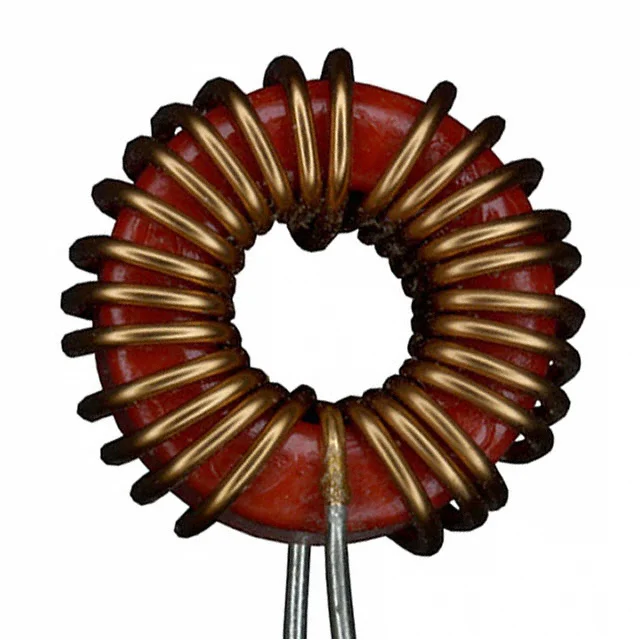

| Type / Construction | Toroidal |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 10 kHz |
| Mounting Type | Through Hole |
