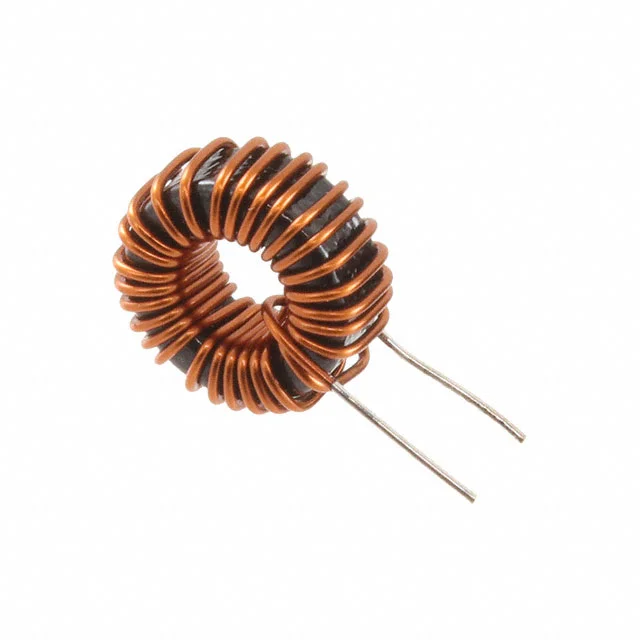

Description
FIXED IND 38UH 3A 31.2 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SHBC10-0R8A0038V.
SHBC10-0R8A0038V has an inductance value of 38 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SHBC10-0R8A0038V is rated for 3 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SHBC10-0R8A0038V lists a DC resistance of 31.2mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SHBC10-0R8A0038V uses a package or case of Radial, Vertical (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SHBC10-0R8A0038V to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 38 µH |
| Tolerance | ±20% |
| Current Rating | 3 A |
| DC Resistance (DCR) | 31.2mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.846" Dia (21.50mm) |
| Case / Size | Radial, Vertical (Open) |
| Package / Case | Radial, Vertical (Open) |
| Supplier | KEMET |
| Description | FIXED IND 38UH 3A 31.2 MOHM TH |
| Series | SHBC |
| Product Status | Active |
| Type / Construction | Toroidal |
| Core Material | Alloy Powder |
| Shielding | Unshielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Through Hole |
| Supplier Device Package | Radial |
| Height - Seated (Max) | 0.846" (21.50mm) |
