Description

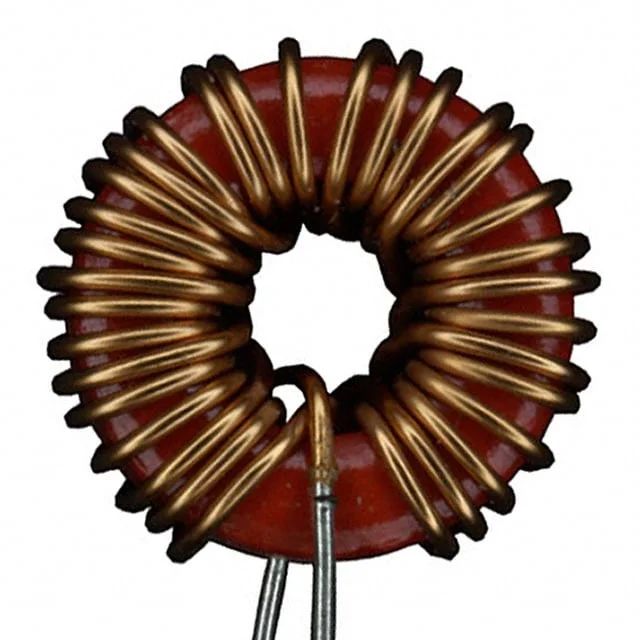

FIXED IND 43UH 1A 60 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 7447034.
7447034 has an inductance value of 43 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
7447034 is rated for 1 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
7447034 lists a DC resistance of 60mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
7447034 uses a package or case of Radial, Vertical (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 7447034 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 43 µH |
| Tolerance | ±20% |
| Current Rating | 1 A |
| DC Resistance (DCR) | 60mOhm Max |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.512" Dia x 0.256" W (13.00mm x 6.50mm) |
| Case / Size | Radial, Vertical (Open) |
| Package / Case | Radial, Vertical (Open) |
| Supplier | Würth Elektronik |
| Description | FIXED IND 43UH 1A 60 MOHM TH |
| Series | WE-FI |
| Product Status | Active |
| Type / Construction | Toroidal |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 10 kHz |
| Mounting Type | Through Hole |
