Description

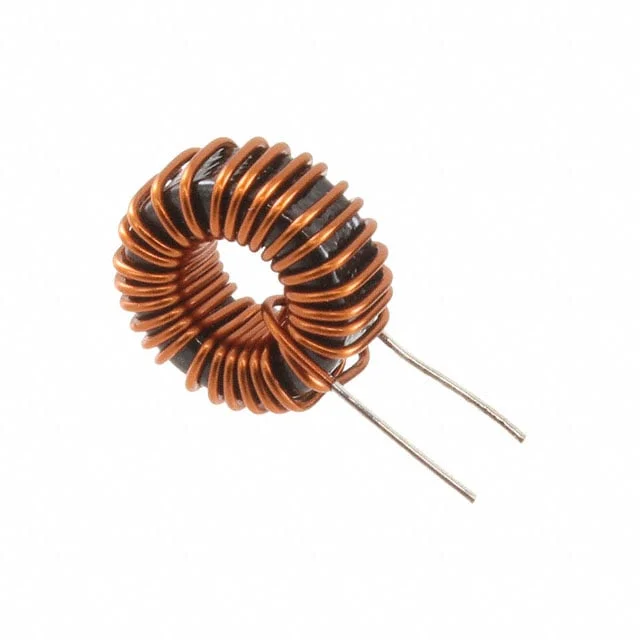

FIXED IND 43UH 2A 54.1 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SHBC8S-0R6A0043V.
SHBC8S-0R6A0043V has an inductance value of 43 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SHBC8S-0R6A0043V is rated for 2 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SHBC8S-0R6A0043V lists a DC resistance of 54.1mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SHBC8S-0R6A0043V uses a package or case of Radial, Vertical (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SHBC8S-0R6A0043V to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 43 µH |
| Tolerance | ±20% |
| Current Rating | 2 A |
| DC Resistance (DCR) | 54.1mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.669" Dia (17.00mm) |
| Case / Size | Radial, Vertical (Open) |
| Package / Case | Radial, Vertical (Open) |
| Supplier | KEMET |
| Description | FIXED IND 43UH 2A 54.1 MOHM TH |
| Series | SHBC |
| Product Status | Active |
| Type / Construction | Toroidal |
| Core Material | Alloy Powder |
| Shielding | Unshielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Through Hole |
| Supplier Device Package | Radial |
| Height - Seated (Max) | 0.669" (17.00mm) |
