Description

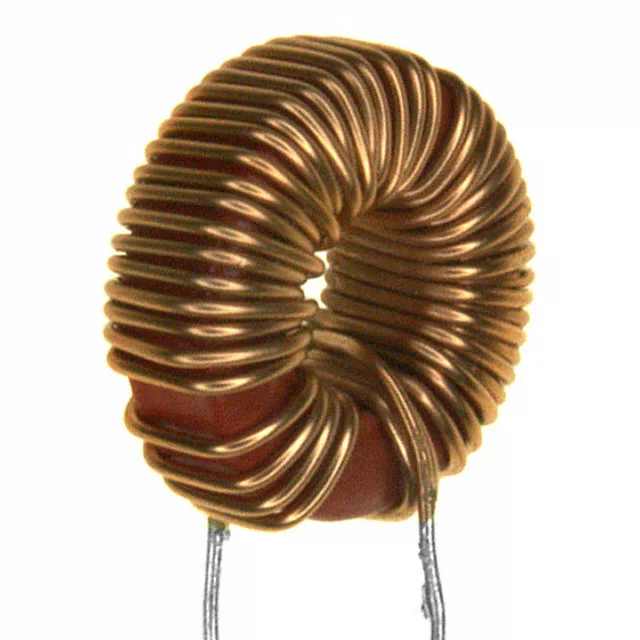

FIXED IND 68UH 800MA 100 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 7447041.
7447041 has an inductance value of 68 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
7447041 is rated for 800 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
7447041 lists a DC resistance of 100mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
7447041 uses a package or case of Radial, Vertical (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 7447041 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 68 µH |
| Tolerance | ±20% |
| Current Rating | 800 mA |
| DC Resistance (DCR) | 100mOhm Max |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.472" Dia x 0.217" W (12.00mm x 5.50mm) |
| Case / Size | Radial, Vertical (Open) |
| Package / Case | Radial, Vertical (Open) |
| Supplier | Würth Elektronik |
| Description | FIXED IND 68UH 800MA 100 MOHM TH |
| Series | WE-FI |
| Product Status | Active |
| Type / Construction | Toroidal |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 10 kHz |
| Mounting Type | Through Hole |
