Description

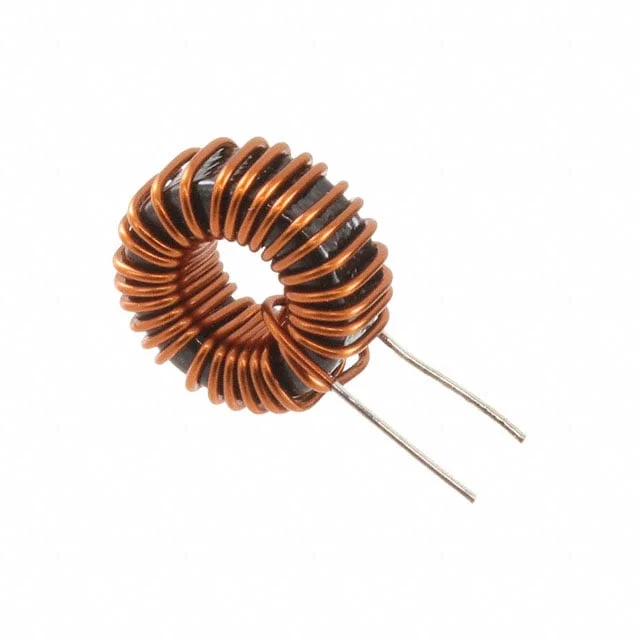

FIXED IND 67UH 8A 22.2 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SHBC14-1R2A0067V.
SHBC14-1R2A0067V has an inductance value of 67 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SHBC14-1R2A0067V is rated for 8 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SHBC14-1R2A0067V lists a DC resistance of 22.2mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SHBC14-1R2A0067V uses a package or case of Radial, Vertical (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SHBC14-1R2A0067V to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 67 µH |
| Tolerance | ±20% |
| Current Rating | 8 A |
| DC Resistance (DCR) | 22.2mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 1.319" Dia (33.50mm) |
| Case / Size | Radial, Vertical (Open) |
| Package / Case | Radial, Vertical (Open) |
| Supplier | KEMET |
| Description | FIXED IND 67UH 8A 22.2 MOHM TH |
| Series | SHBC |
| Product Status | Active |
| Type / Construction | Toroidal |
| Core Material | Alloy Powder |
| Shielding | Unshielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Through Hole |
| Supplier Device Package | Radial |
| Height - Seated (Max) | 1.319" (33.50mm) |
