Description

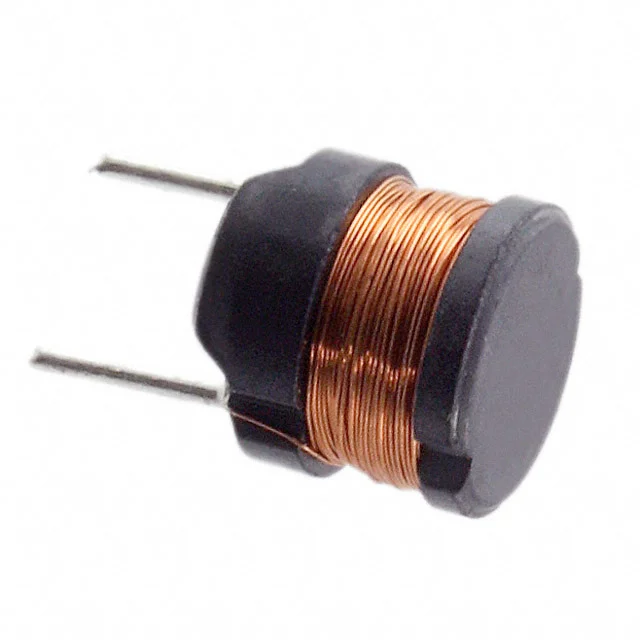

FIXED IND 3.9MH 180MA 12 OHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 744730392.
744730392 has an inductance value of 3.9 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
744730392 is rated for 180 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
744730392 lists a DC resistance of 12Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
744730392 uses a package or case of Radial, Vertical Cylinder (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 744730392 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 3.9 mH |
| Tolerance | ±5% |
| Current Rating | 180 mA |
| DC Resistance (DCR) | 12Ohm Max |
| Saturation Current | 200mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.307" Dia (7.80mm) |
| Case / Size | Radial, Vertical Cylinder (Open) |
| Package / Case | Radial, Vertical Cylinder (Open) |
| Supplier | Würth Elektronik |
| Description | FIXED IND 3.9MH 180MA 12 OHM TH |
| Series | WE-TI |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Self Resonant Frequency | 1.04MHz |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.295" (7.50mm) |
