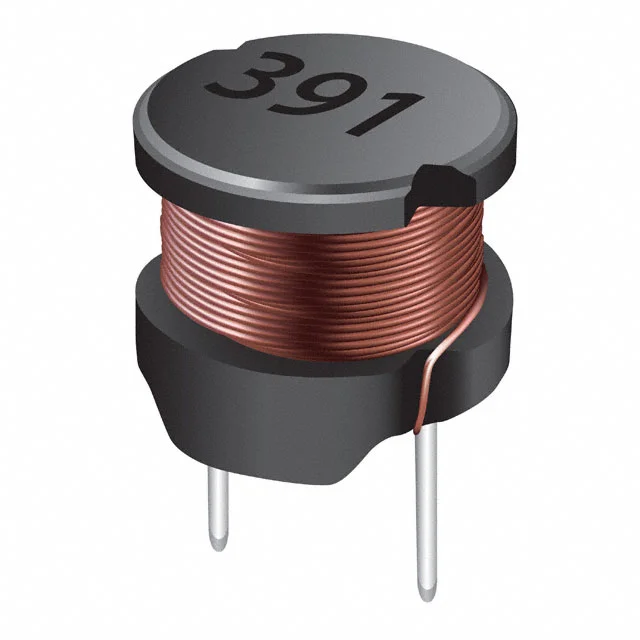

FIXED IND 3.9MH 150MA 10.6 OHM
| Inductance | 3.9 mH |
| Tolerance | ±10% |
| Current Rating | 150 mA |
| DC Resistance (DCR) | 10.6Ohm Max |
| saturationCurrent | - |
| Operating Temperature | -30°C ~ 100°C |
| Dimensions | 0.307" Dia (7.80mm) |
| Case / Size | Radial, Vertical Cylinder (Open) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 3.9MH 150MA 10.6 OHM |
| Series | RL875 |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 0.217" (5.50mm) |
| features | - |
