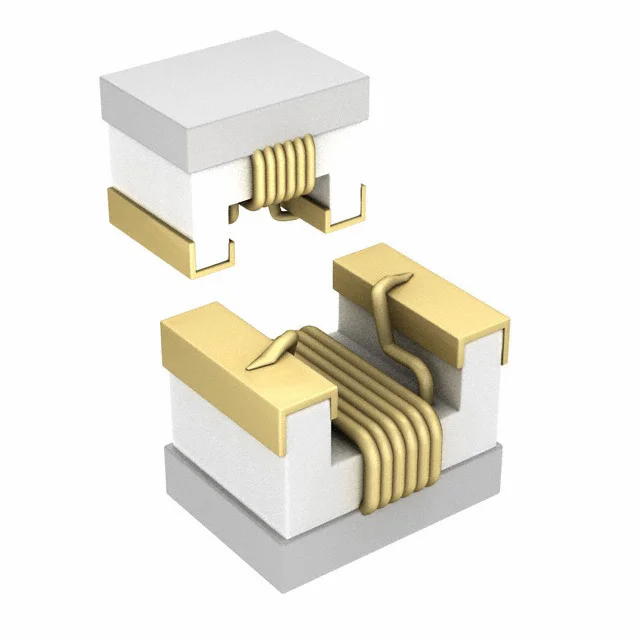

Description
FIXED IND 8.2UH 120MA 3.5 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 744760382A.
744760382A has an inductance value of 8.2 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
744760382A is rated for 120 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
744760382A lists a DC resistance of 3.5Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
744760382A uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 744760382A to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 8.2 µH |
| Tolerance | ±5% |
| Current Rating | 120 mA |
| DC Resistance (DCR) | 3.5Ohm Max |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.090" L x 0.067" W (2.29mm x 1.70mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 8.2UH 120MA 3.5 OHM |
| Series | WE-RFI |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 15 @ 7.96MHz |
| Self Resonant Frequency | 40MHz |
| Inductance Test Frequency | 7.96 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0805 |
| Height - Seated (Max) | 0.058" (1.48mm) |
