Inductor Datasheets

Browse and download PDF datasheets for inductors from leading manufacturers.

Series: WE-RFI

Browse series tables and compare the available specifications.

Product Attributes

All Delevan (24873)Pulse Electronics (17770)Bourns Inc. (10998)Gowanda (8081)Taiyo Yuden (8062)TDK (7746)muRata (7717)Abracon (6926)

744760410A

Würth Elektronik

10 µH• 80 mANonstandard

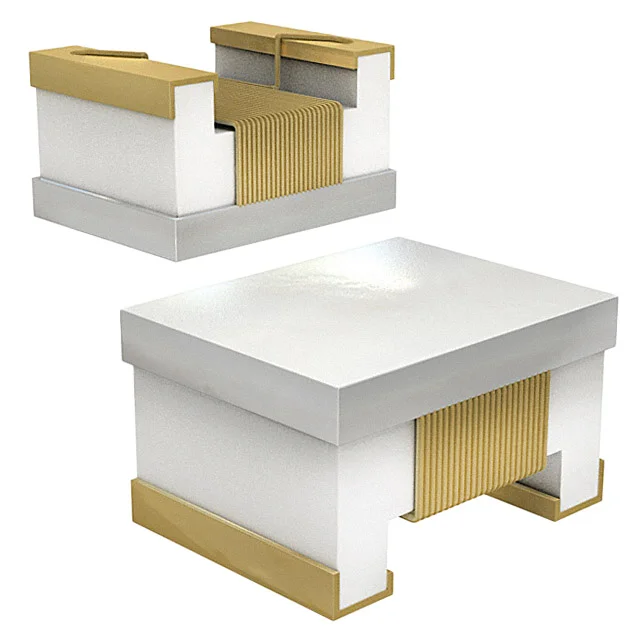

744762447A

Würth Elektronik

47 µH• 45 mA1008 (2520 Metric)

7447650222

Würth Elektronik

220 nH• 390 mA0402 (1005 Metric)

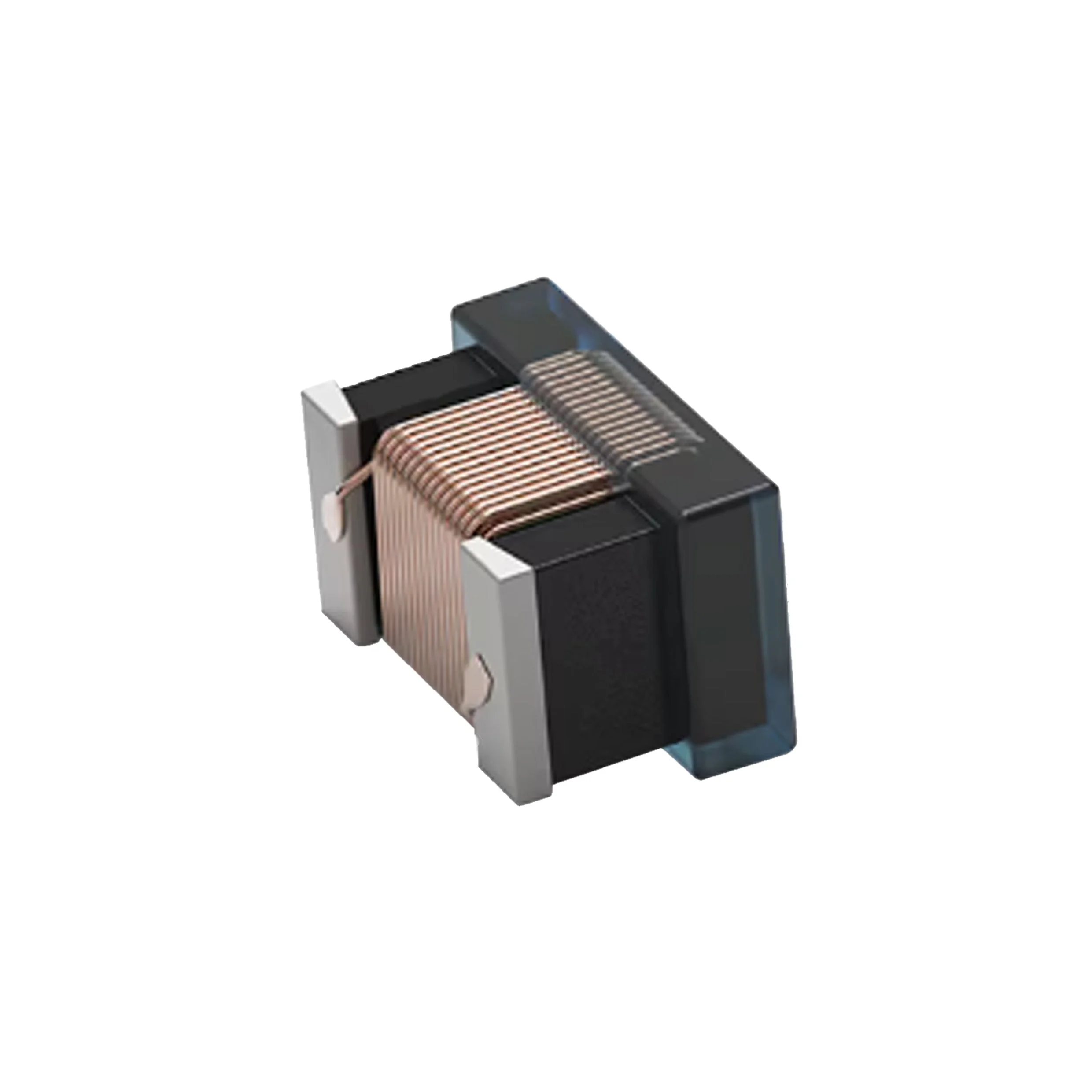

7447650120

Würth Elektronik

20 nH• 1.08 A0402 (1005 Metric)

7447650210

Würth Elektronik

100 nH• 550 mA0402 (1005 Metric)

7447650247

Würth Elektronik

470 nH• 260 mA0402 (1005 Metric)

7447610315

Würth Elektronik

1.5 µH• 200 mA0603 (1608 Metric)

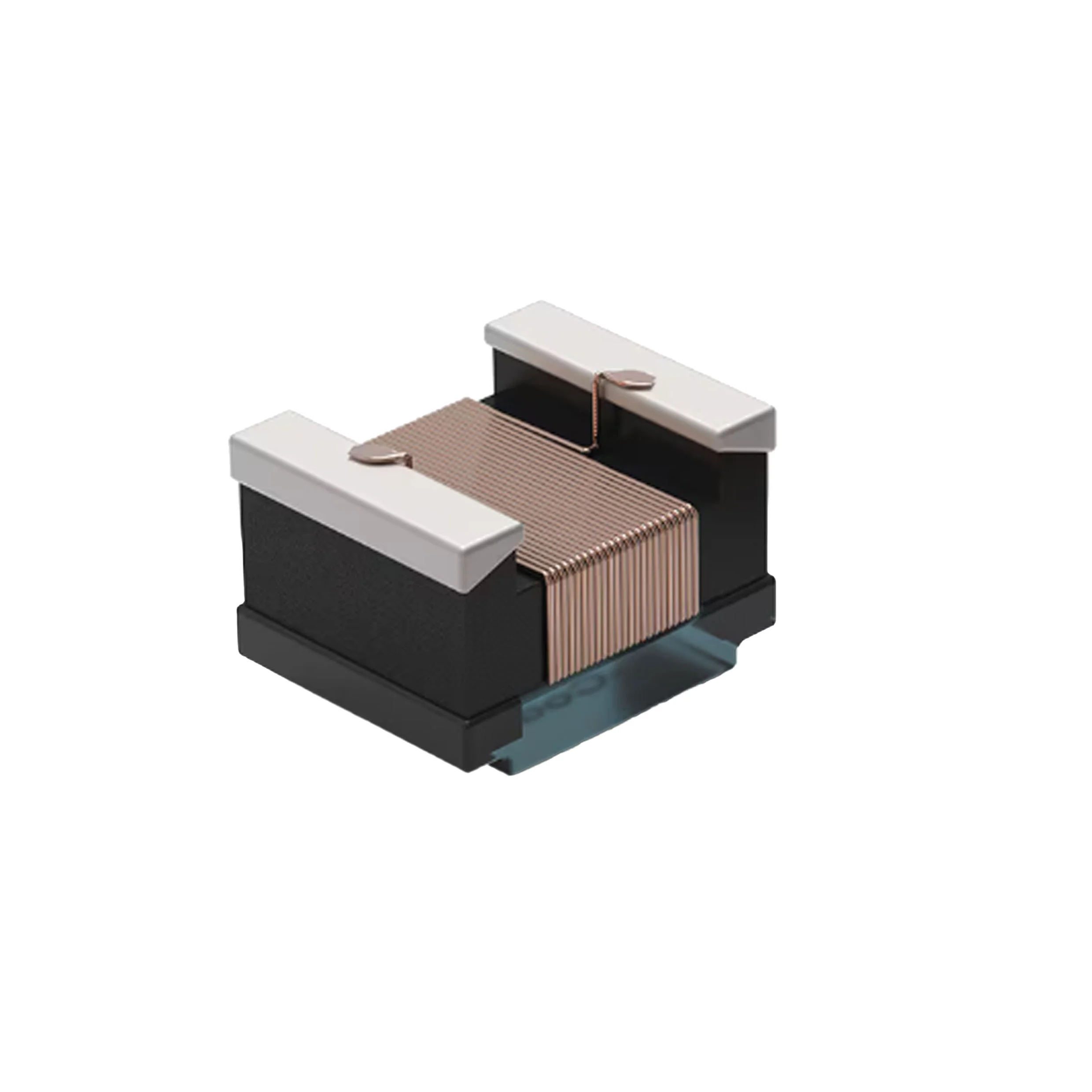

7447610282

Würth Elektronik

820 nH• 300 mA0603 (1608 Metric)

7447610256

Würth Elektronik

560 nH• 390 mA0603 (1608 Metric)

7447610227

Würth Elektronik

270 nH• 480 mA0603 (1608 Metric)

7447610310

Würth Elektronik

1 µH• 230 mA0603 (1608 Metric)

744760339A

Würth Elektronik

3.9 µH• 200 mANonstandard

744762410A

Würth Elektronik

10 µH• 150 mA1008 (2520 Metric)

744762422A

Würth Elektronik

22 µH• 110 mA1008 (2520 Metric)

744762415A

Würth Elektronik

15 µH• 130 mA1008 (2520 Metric)

744760247A

Würth Elektronik

470 nH• 500 mANonstandard

744762322A

Würth Elektronik

2.2 µH• 200 mA1008 (2520 Metric)

744760256A

Würth Elektronik

560 nH• 450 mANonstandard

744762356A

Würth Elektronik

5.6 µH• 170 mA1008 (2520 Metric)

744760356A

Würth Elektronik

5.6 µH• 160 mANonstandard

744760333A

Würth Elektronik

3.3 µH• 210 mANonstandard

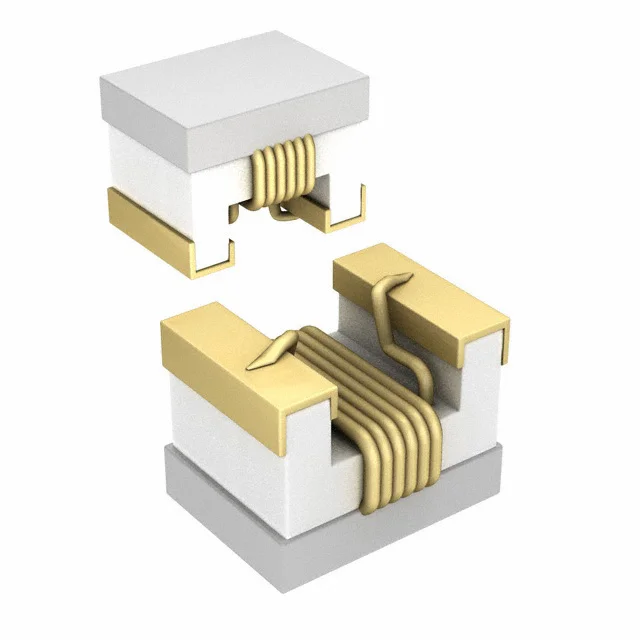

744760318A

Würth Elektronik

1.8 µH• 120 mANonstandard

744760322A

Würth Elektronik

2.2 µH• 110 mANonstandard

744760282A

Würth Elektronik

820 nH• 300 mANonstandard

744760347A

Würth Elektronik

4.7 µH• 180 mANonstandard

Product	Inductance	Current	DCR	Size	Package	Actions
744760410A Würth Elektronik	10 µH	80 mA	5Ohm Max	0.090" L x 0.067" W (2.29mm x 1.70mm)	Nonstandard	View PDF
744762447A Würth Elektronik	47 µH	45 mA	14Ohm Max	0.102" L x 0.083" W (2.60mm x 2.10mm)	1008 (2520 Metric)	View PDF
7447650222 Würth Elektronik	220 nH	390 mA	220mOhm Max	0.039" L x 0.022" W (1.00mm x 0.55mm)	0402 (1005 Metric)	View PDF
7447650120 Würth Elektronik	20 nH	1.08 A	25mOhm Max	0.039" L x 0.022" W (1.00mm x 0.55mm)	0402 (1005 Metric)	View PDF
7447650210 Würth Elektronik	100 nH	550 mA	130mOhm Max	0.039" L x 0.022" W (1.00mm x 0.55mm)	0402 (1005 Metric)	View PDF
7447650247 Würth Elektronik	470 nH	260 mA	510mOhm Max	0.039" L x 0.022" W (1.00mm x 0.55mm)	0402 (1005 Metric)	View PDF
7447610315 Würth Elektronik	1.5 µH	200 mA	1.07Ohm Max	0.065" L x 0.043" W (1.65mm x 1.10mm)	0603 (1608 Metric)	View PDF
7447610282 Würth Elektronik	820 nH	300 mA	450mOhm Max	0.065" L x 0.043" W (1.65mm x 1.10mm)	0603 (1608 Metric)	View PDF
7447610256 Würth Elektronik	560 nH	390 mA	270mOhm Max	0.065" L x 0.043" W (1.65mm x 1.10mm)	0603 (1608 Metric)	View PDF
7447610227 Würth Elektronik	270 nH	480 mA	165mOhm Max	0.065" L x 0.043" W (1.65mm x 1.10mm)	0603 (1608 Metric)	View PDF
7447610310 Würth Elektronik	1 µH	230 mA	700mOhm Max	0.065" L x 0.043" W (1.65mm x 1.10mm)	0603 (1608 Metric)	View PDF
744760339A Würth Elektronik	3.9 µH	200 mA	2.5Ohm Max	0.090" L x 0.067" W (2.29mm x 1.70mm)	Nonstandard	View PDF
744762410A Würth Elektronik	10 µH	150 mA	3.5Ohm Max	0.102" L x 0.083" W (2.60mm x 2.10mm)	1008 (2520 Metric)	View PDF
744762422A Würth Elektronik	22 µH	110 mA	5Ohm Max	0.102" L x 0.083" W (2.60mm x 2.10mm)	1008 (2520 Metric)	View PDF
744762415A Würth Elektronik	15 µH	130 mA	4Ohm Max	0.102" L x 0.083" W (2.60mm x 2.10mm)	1008 (2520 Metric)	View PDF
744760247A Würth Elektronik	470 nH	500 mA	950mOhm Max	0.090" L x 0.067" W (2.29mm x 1.70mm)	Nonstandard	View PDF
744762322A Würth Elektronik	2.2 µH	200 mA	2.35Ohm Max	0.102" L x 0.083" W (2.60mm x 2.10mm)	1008 (2520 Metric)	View PDF
744760256A Würth Elektronik	560 nH	450 mA	1.1Ohm Max	0.090" L x 0.067" W (2.29mm x 1.70mm)	Nonstandard	View PDF
744762356A Würth Elektronik	5.6 µH	170 mA	2.6Ohm Max	0.102" L x 0.083" W (2.60mm x 2.10mm)	1008 (2520 Metric)	View PDF
744760356A Würth Elektronik	5.6 µH	160 mA	3Ohm Max	0.090" L x 0.067" W (2.29mm x 1.70mm)	Nonstandard	View PDF
744760333A Würth Elektronik	3.3 µH	210 mA	2.3Ohm Max	0.090" L x 0.067" W (2.29mm x 1.70mm)	Nonstandard	View PDF
744760318A Würth Elektronik	1.8 µH	120 mA	3Ohm Max	0.090" L x 0.067" W (2.29mm x 1.70mm)	Nonstandard	View PDF
744760322A Würth Elektronik	2.2 µH	110 mA	3.1Ohm Max	0.090" L x 0.067" W (2.29mm x 1.70mm)	Nonstandard	View PDF
744760282A Würth Elektronik	820 nH	300 mA	1.5Ohm Max	0.090" L x 0.067" W (2.29mm x 1.70mm)	Nonstandard	View PDF
744760347A Würth Elektronik	4.7 µH	180 mA	2.8Ohm Max	0.090" L x 0.067" W (2.29mm x 1.70mm)	Nonstandard	View PDF
