Description
FIXED IND 2.7UH 195MA 2.6 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 744762327A.
744762327A has an inductance value of 2.7 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
744762327A is rated for 195 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
744762327A lists a DC resistance of 2.6Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
744762327A uses a package or case of 1008 (2520 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 744762327A to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 2.7 µH |
| Tolerance | ±5% |
| Current Rating | 195 mA |
| DC Resistance (DCR) | 2.6Ohm Max |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.102" L x 0.083" W (2.60mm x 2.10mm) |
| Case / Size | 1008 (2520 Metric) |
| Package / Case | 1008 (2520 Metric) |
| Supplier | Würth Elektronik |
| Description | FIXED IND 2.7UH 195MA 2.6 OHM |
| Series | WE-RFI |
| Product Status | Active |

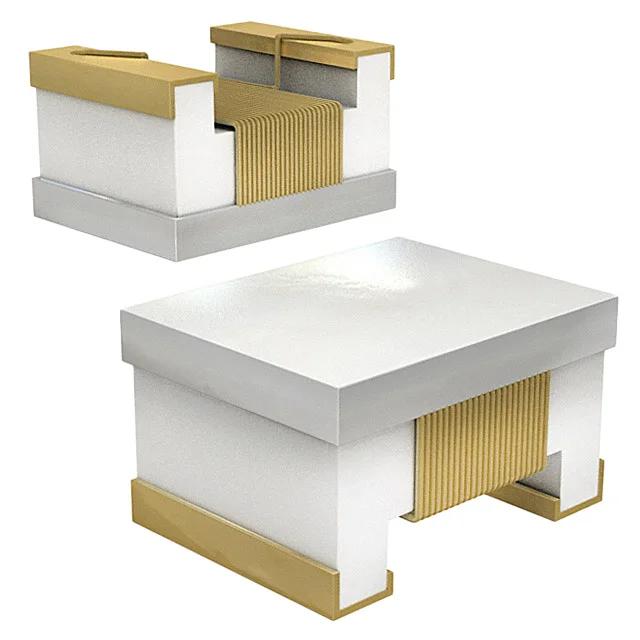

| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 20 @ 7.96MHz |
| Self Resonant Frequency | 130MHz |
| Inductance Test Frequency | 7.96 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1008 (2520 Metric) |
| Height - Seated (Max) | 0.075" (1.90mm) |
