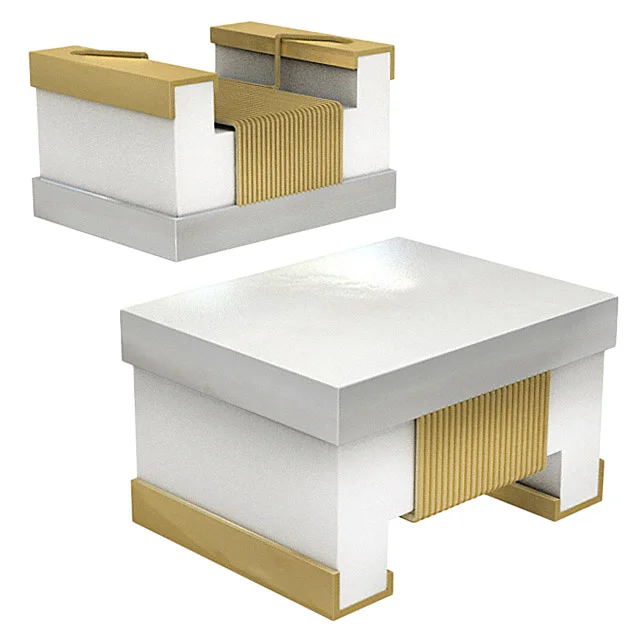

FIXED IND 3.3UH 185MA 2.85 OHM
| Inductance | 3.3 µH |
| Tolerance | ±5% |
| Current Rating | 185 mA |
| DC Resistance (DCR) | 2.85Ohm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.102" L x 0.083" W (2.60mm x 2.10mm) |
| Case / Size | 1008 (2520 Metric) |
| Supplier | Würth Elektronik |
| Description | FIXED IND 3.3UH 185MA 2.85 OHM |
| Series | WE-RFI |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 20 @ 7.96MHz |
| selfResonantFreq | 80MHz |
| ratings | - |
| testFrequency | 7.96 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 1008 (2520 Metric) |
| heightMax | 0.075" (1.90mm) |
| features | - |
