Description

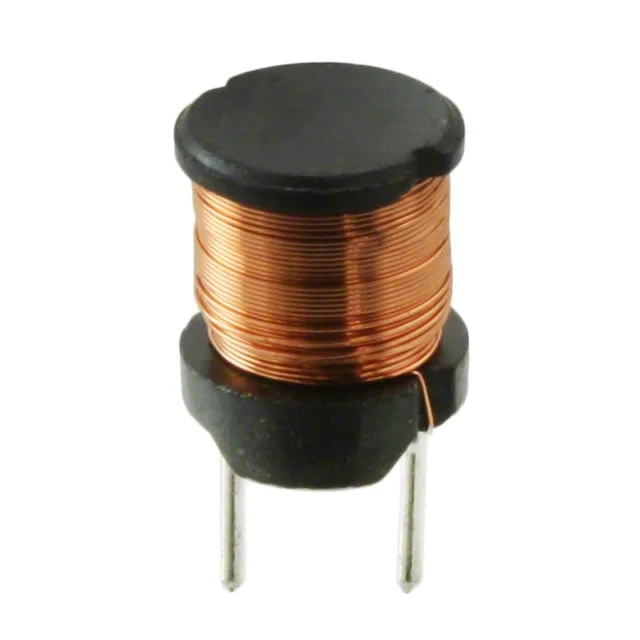

FIXED IND 36MH 70MA 94 OHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 7447722363.
7447722363 has an inductance value of 36 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
7447722363 is rated for 70 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
7447722363 lists a DC resistance of 94Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
7447722363 uses a package or case of Radial, Vertical Cylinder. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 7447722363 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 36 mH |
| Tolerance | ±5% |
| Current Rating | 70 mA |
| DC Resistance (DCR) | 94Ohm Max |
| Saturation Current | 80mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.335" Dia (8.50mm) |
| Case / Size | Radial, Vertical Cylinder |
| Package / Case | Radial, Vertical Cylinder |
| Supplier | Würth Elektronik |
| Description | FIXED IND 36MH 70MA 94 OHM TH |
| Series | WE-TI |
| Product Status | Active |
| Type / Construction | Wirewound |
| Shielding | Unshielded |
| Self Resonant Frequency | 250kHz |
| Inductance Test Frequency | 10 kHz |
| Mounting Type | Through Hole |
| Supplier Device Package | Radial, Vertical Cylinder |
| Height - Seated (Max) | 0.394" (10.00mm) |
