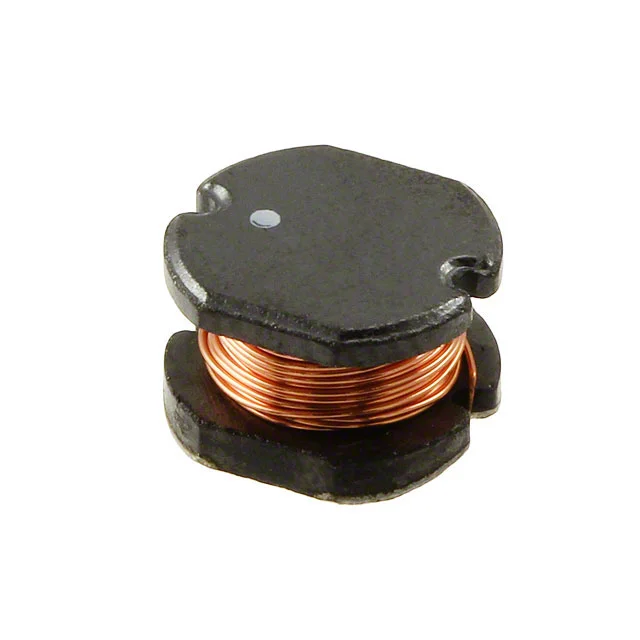

FIXED IND 2.2UH 1.71A 90 MOHM
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating | 1.71 A |
| DC Resistance (DCR) | 90mOhm Max |
| saturationCurrent | 2.54A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.138" L x 0.118" W (3.50mm x 3.00mm) |
| Case / Size | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 2.2UH 1.71A 90 MOHM |
| Series | WE-PD2 |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | - |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | 100MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 3521 |
| heightMax | 0.094" (2.40mm) |
| features | - |
