Inductor Datasheets
Browse and download PDF datasheets for inductors from leading manufacturers.
Product Attributes
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
 744774122 Würth Elektronik | 22 µH | 1.28 A | 180mOhm Max | 0.228" L x 0.205" W (5.80mm x 5.20mm) | Nonstandard | |
 7447732115 Würth Elektronik | 15 µH | 640 mA | 430mOhm Max | 0.138" L x 0.118" W (3.50mm x 3.00mm) | Nonstandard | |
 7447732110 Würth Elektronik | 10 µH | 800 mA | 300mOhm Max | 0.138" L x 0.118" W (3.50mm x 3.00mm) | Nonstandard | |
 744773022 Würth Elektronik | 2.2 µH | 2.5 A | 71mOhm Max | 0.177" L x 0.157" W (4.50mm x 4.00mm) | Nonstandard | |
 744773122 Würth Elektronik | 22 µH | 1 A | 370mOhm Max | 0.177" L x 0.157" W (4.50mm x 4.00mm) | Nonstandard | |
 74477310 Würth Elektronik | 10 µH | 1.45 A | 182mOhm Max | 0.177" L x 0.157" W (4.50mm x 4.00mm) | Nonstandard | |

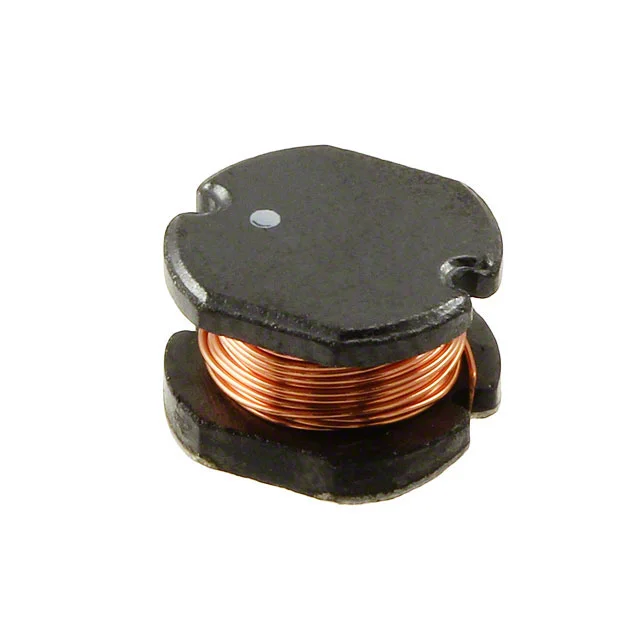

 744773115 Würth Elektronik | 15 µH | 1.2 A | 235mOhm Max | 0.177" L x 0.157" W (4.50mm x 4.00mm) | Nonstandard | |
 744773147 Würth Elektronik | 47 µH | 680 mA | 844mOhm Max | 0.177" L x 0.157" W (4.50mm x 4.00mm) | Nonstandard | |
 744773033 Würth Elektronik | 3.3 µH | 2 A | 86mOhm Max | 0.177" L x 0.157" W (4.50mm x 4.00mm) | Nonstandard | |
 7447730 Würth Elektronik | 1 µH | 4 A | 49mOhm Max | 0.177" L x 0.157" W (4.50mm x 4.00mm) | Nonstandard | |
 744773082 Würth Elektronik | 8.2 µH | 1.5 A | 146mOhm Max | 0.177" L x 0.157" W (4.50mm x 4.00mm) | Nonstandard | |
 744773047 Würth Elektronik | 4.7 µH | 1.82 A | 110mOhm Max | 0.177" L x 0.157" W (4.50mm x 4.00mm) | Nonstandard | |
 744773056 Würth Elektronik | 5.6 µH | 1.58 A | 126mOhm Max | 0.177" L x 0.157" W (4.50mm x 4.00mm) | Nonstandard | |
 744776227 Würth Elektronik | 270 µH | 620 mA | 970mOhm Max | 0.394" L x 0.354" W (10.00mm x 9.00mm) | Nonstandard | |
 74477510 Würth Elektronik | 10 µH | 2.3 A | 70mOhm Max | 0.307" L x 0.276" W (7.80mm x 7.00mm) | Nonstandard | |
 744775147 Würth Elektronik | 47 µH | 1.17 A | 180mOhm Max | 0.307" L x 0.276" W (7.80mm x 7.00mm) | Nonstandard | |
 744775122 Würth Elektronik | 22 µH | 1.76 A | 110mOhm Max | 0.307" L x 0.276" W (7.80mm x 7.00mm) | Nonstandard | |
 744773133 Würth Elektronik | 33 µH | 860 mA | 540mOhm Max | 0.177" L x 0.157" W (4.50mm x 4.00mm) | Nonstandard | |
 744773068 Würth Elektronik | 6.8 µH | 1.54 A | 131mOhm Max | 0.177" L x 0.157" W (4.50mm x 4.00mm) | Nonstandard | |
 744773168 Würth Elektronik | 68 µH | 560 mA | 1.117Ohm Max | 0.177" L x 0.157" W (4.50mm x 4.00mm) | Nonstandard | |
 744773112 Würth Elektronik | 12 µH | 1.28 A | 210mOhm Max | 0.177" L x 0.157" W (4.50mm x 4.00mm) | Nonstandard | |
 74477410 Würth Elektronik | 10 µH | 2.2 A | 100mOhm Max | 0.228" L x 0.205" W (5.80mm x 5.20mm) | Nonstandard | |
 7447745100 Würth Elektronik | 10 µH | 1.7 A | 130mOhm Max | 0.228" L x 0.205" W (5.80mm x 5.20mm) | Nonstandard | |
 744774118 Würth Elektronik | 18 µH | 1.45 A | 150mOhm Max | 0.228" L x 0.205" W (5.80mm x 5.20mm) | Nonstandard | |
 74477420 Würth Elektronik | 100 µH | 570 mA | 650mOhm Max | 0.228" L x 0.205" W (5.80mm x 5.20mm) | Nonstandard |
