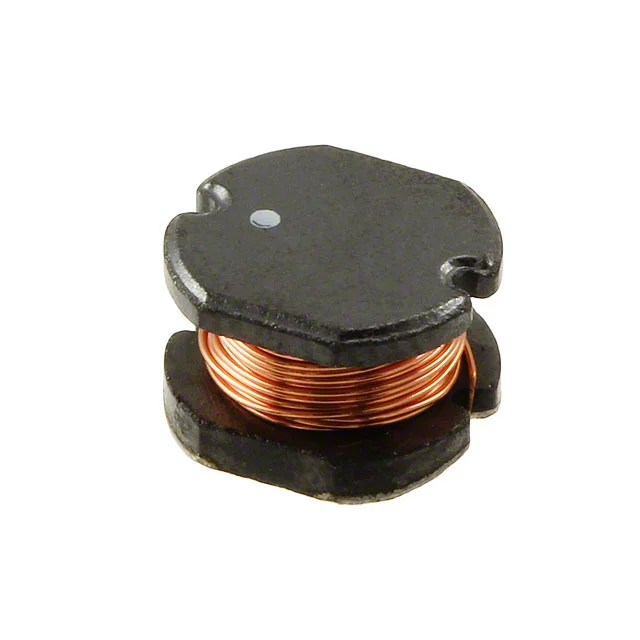

FIXED IND 120UH 490MA 930 MOHM
| Inductance | 120 µH |
| Tolerance | ±10% |
| Current Rating | 490 mA |
| DC Resistance (DCR) | 930mOhm Max |
| saturationCurrent | 630mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.228" L x 0.205" W (5.80mm x 5.20mm) |
| Case / Size | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 120UH 490MA 930 MOHM |
| Series | WE-PD2 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | 7MHz |
| ratings | - |
| testFrequency | 10 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.191" (4.85mm) |
| features | - |
