Description

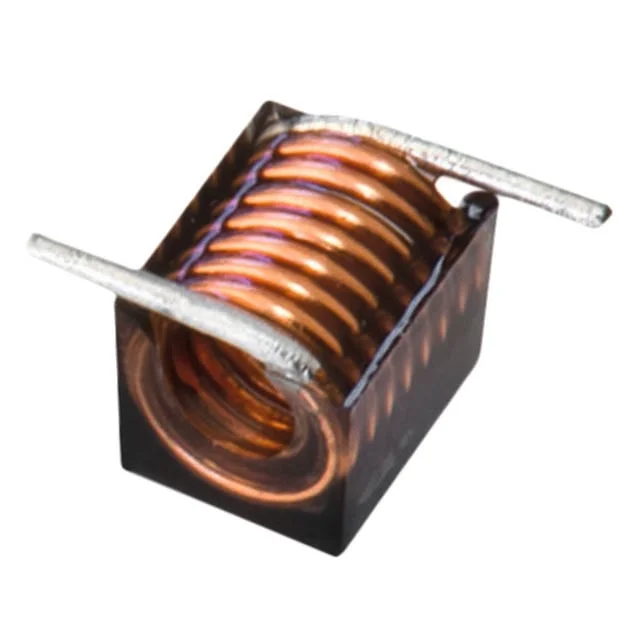

FIXED IND 28NH 4A 6 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 744914128G.
744914128G has an inductance value of 28 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
744914128G is rated for 4 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
744914128G lists a DC resistance of 6mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
744914128G uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 744914128G to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 28 nH |
| Tolerance | ±2% |
| Current Rating | 4 A |
| DC Resistance (DCR) | 6mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.152" L x 0.120" W (3.86mm x 3.05mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 28NH 4A 6 MOHM SMD |
| Series | WE-CAIR |
| Product Status | Active |
| Type / Construction | Wirewound |
| Core Material | Air |
| Shielding | Unshielded |
| Q @ Frequency | 105 @ 150MHz |
| Self Resonant Frequency | 1.8GHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 150 MHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.125" (3.18mm) |
