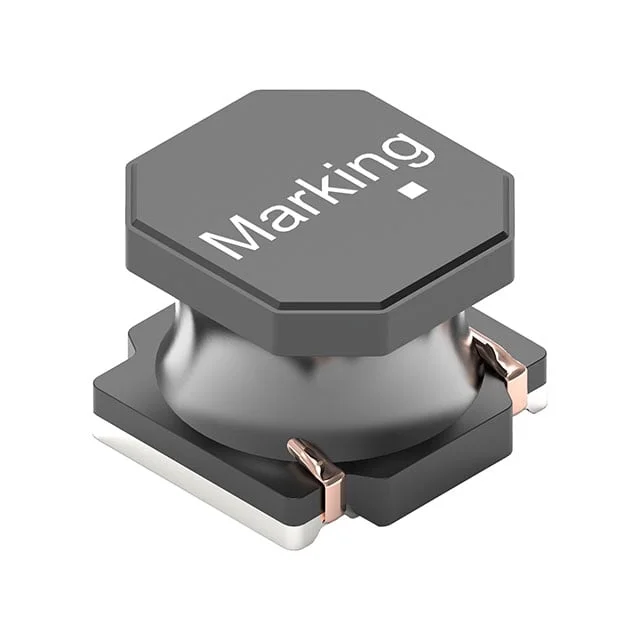

FIXED IND 3.3UH 4.06A 29 MOHM
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating | 4.06 A |
| DC Resistance (DCR) | 29mOhm Max |
| saturationCurrent | 4.3A |
| Operating Temperature | -50°C ~ 150°C |
| Dimensions | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Case / Size | 2020 (5050 Metric) |
| Supplier | Würth Elektronik |
| Description | FIXED IND 3.3UH 4.06A 29 MOHM |
| Series | WE-LQSA |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 48MHz |
| ratings | AEC-Q200 |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 2020 |
| heightMax | 0.157" (4.00mm) |
| features | - |
