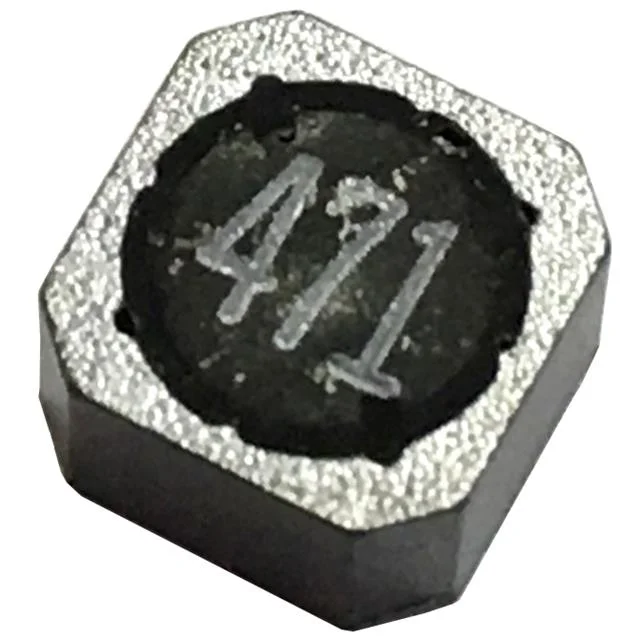

FIXED IND 3.3UH 2.5A 65 MOHM SMD
| Inductance | 3.3 µH |
| Tolerance | ±30% |
| Current Rating | 2.5 A |
| DC Resistance (DCR) | 65mOhm Max |
| saturationCurrent | 2.4A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Case / Size | 2020 (5050 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 3.3UH 2.5A 65 MOHM SMD |
| Series | BPXX |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 2020 |
| heightMax | 0.079" (2.00mm) |
| features | - |
