Description

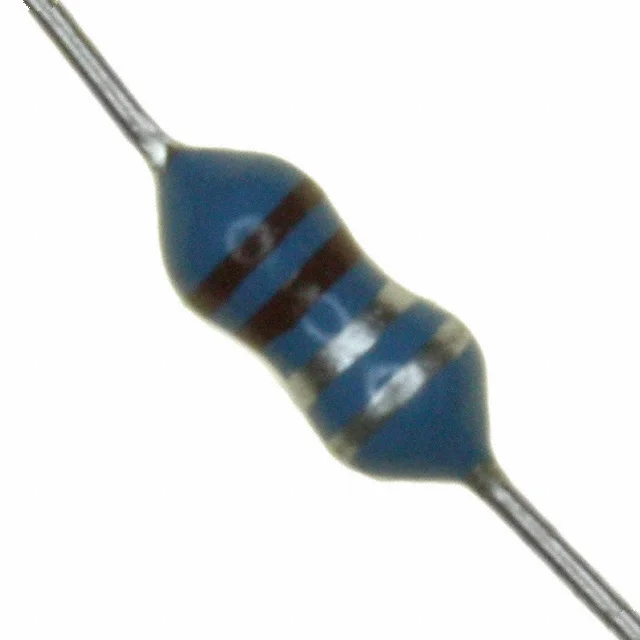

FIXED IND 15UH 150MA 880 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 78F150J.
78F150J has an inductance value of 15 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
78F150J is rated for 150 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
78F150J lists a DC resistance of 880mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
78F150J uses a package or case of Axial. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 78F150J to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 15 µH |
| Tolerance | ±5% |
| Current Rating | 150 mA |
| DC Resistance (DCR) | 880mOhm Max |
| Saturation Current | - |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) |
| Case / Size | Axial |
| Package / Case | Axial |
| Supplier | Bourns Inc. |
| Description | FIXED IND 15UH 150MA 880 MOHM TH |
| Series | 78F |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 50 @ 2.5MHz |
| Self Resonant Frequency | 16MHz |
| Ratings | - |
| Inductance Test Frequency | 2.5 MHz |
| Mounting Type | Through Hole |
| Supplier Device Package | - |
| Height - Seated (Max) | - |
| Features | - |
