Description

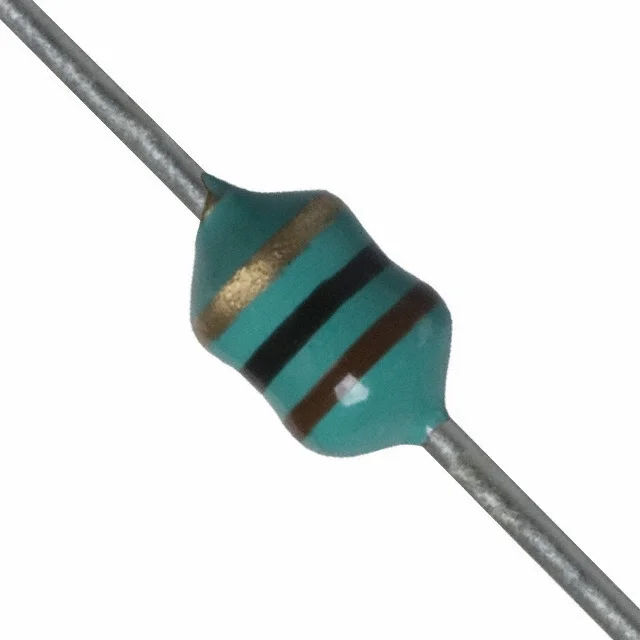

FIXED IND 1UH 270MA 800 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 79F1R0K-TR-RC.
79F1R0K-TR-RC has an inductance value of 1 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
79F1R0K-TR-RC is rated for 270 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
79F1R0K-TR-RC lists a DC resistance of 800mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
79F1R0K-TR-RC uses a package or case of Axial. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 79F1R0K-TR-RC to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 1 µH |
| Tolerance | ±10% |
| Current Rating | 270 mA |
| DC Resistance (DCR) | 800mOhm Max |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) |
| Case / Size | Axial |
| Package / Case | Axial |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1UH 270MA 800 MOHM TH |
| Series | 79F |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 35 @ 25MHz |
| Self Resonant Frequency | 150MHz |
| Inductance Test Frequency | 25 MHz |
| Mounting Type | Through Hole |
