Description

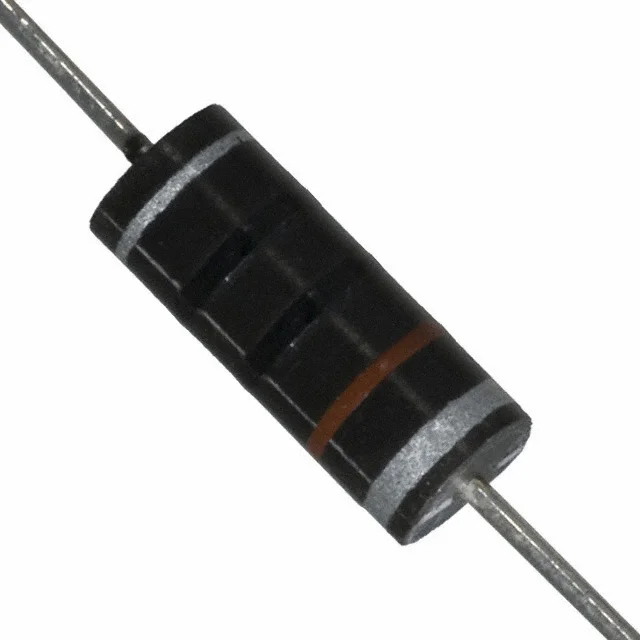

FIXED IND 10UH 220MA 1.62 OHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 9250A-103-TR-RC.
9250A-103-TR-RC has an inductance value of 10 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
9250A-103-TR-RC is rated for 220 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
9250A-103-TR-RC lists a DC resistance of 1.62Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
9250A-103-TR-RC uses a package or case of Axial. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 9250A-103-TR-RC to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 10 µH |
| Tolerance | ±10% |
| Current Rating | 220 mA |
| DC Resistance (DCR) | 1.62Ohm Max |
| Saturation Current | 220mA |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) |
| Case / Size | Axial |
| Package / Case | Axial |
| Supplier | Bourns Inc. |
| Description | FIXED IND 10UH 220MA 1.62 OHM TH |
| Series | 9250A |
| Product Status | Active |
| Type / Construction | Molded |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 50 @ 7.9MHz |
| Self Resonant Frequency | 46MHz |
| Inductance Test Frequency | 7.9 MHz |
| Mounting Type | Through Hole |
