Series: 511

Browse series tables and compare the available specifications.

Product Attributes

All Delevan (24873)Pulse Electronics (17770)Bourns Inc. (10998)Gowanda (8081)Taiyo Yuden (8062)TDK (7746)muRata (7717)Abracon (6926)

511-10F

Delevan

360 nH• 1.515 AAxial

511-11F

Delevan

390 nH• 1.5 AAxial

511-12F

Delevan

430 nH• 1.43 AAxial

511-14F

Delevan

510 nH• 1.315 AAxial

511-16F

Delevan

620 nH• 1.265 AAxial

511-18F

Delevan

750 nH• 1.115 AAxial

511-20F

Delevan

910 nH• 970 mAAxial

511-22F

Delevan

1.1 µH• 730 mAAxial

511-24F

Delevan

1.3 µH• 685 mAAxial

511-26F

Delevan

1.6 µH• 610 mAAxial

511-28F

Delevan

2 µH• 530 mAAxial

511-2F

Delevan

160 nH• 2.37 AAxial

511-30F

Delevan

2.4 µH• 450 mAAxial

511-32F

Delevan

3 µH• 355 mAAxial

511-34F

Delevan

3.6 µH• 325 mAAxial

511-36F

Delevan

4.3 µH• 305 mAAxial

511-38F

Delevan

5.1 µH• 570 mAAxial

511-3F

Delevan

180 nH• 2.285 AAxial

511-40F

Delevan

6.2 µH• 455 mAAxial

511-42F

Delevan

7.5 µH• 420 mAAxial

511-44F

Delevan

9.1 µH• 350 mAAxial

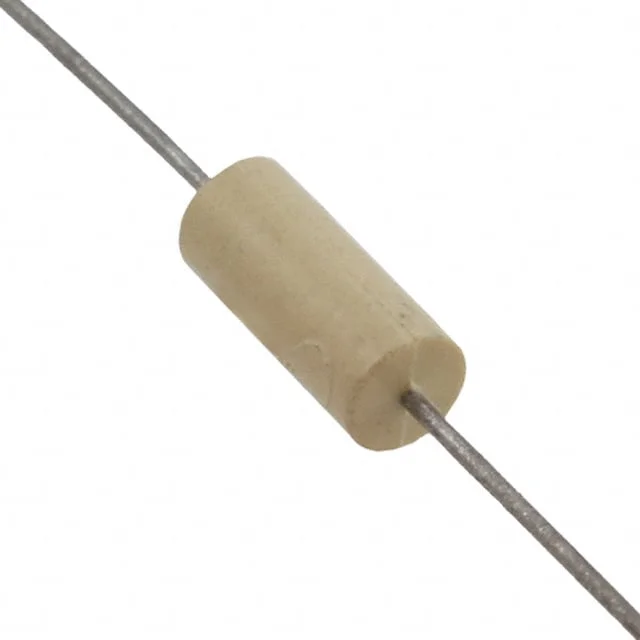

511-46F

Delevan

11 µH• 310 mAAxial

511-48F

Delevan

13 µH• 285 mAAxial

511-4F

Delevan

200 nH• 2.185 AAxial

511-50F

Delevan

16 µH• 230 mAAxial

Product	Inductance	Current	DCR	Size	Package	Actions
511-10F Delevan	360 nH	1.515 A	98mOhm Max	0.156" Dia x 0.375" L (3.96mm x 9.53mm)	Axial	View PDF
511-11F Delevan	390 nH	1.5 A	100mOhm Max	0.156" Dia x 0.375" L (3.96mm x 9.53mm)	Axial	View PDF
511-12F Delevan	430 nH	1.43 A	110mOhm Max	0.156" Dia x 0.375" L (3.96mm x 9.53mm)	Axial	View PDF
511-14F Delevan	510 nH	1.315 A	130mOhm Max	0.156" Dia x 0.375" L (3.96mm x 9.53mm)	Axial	View PDF
511-16F Delevan	620 nH	1.265 A	140mOhm Max	0.156" Dia x 0.375" L (3.96mm x 9.53mm)	Axial	View PDF
511-18F Delevan	750 nH	1.115 A	180mOhm Max	0.156" Dia x 0.375" L (3.96mm x 9.53mm)	Axial	View PDF
511-20F Delevan	910 nH	970 mA	240mOhm Max	0.156" Dia x 0.375" L (3.96mm x 9.53mm)	Axial	View PDF
511-22F Delevan	1.1 µH	730 mA	420mOhm Max	0.156" Dia x 0.375" L (3.96mm x 9.53mm)	Axial	View PDF
511-24F Delevan	1.3 µH	685 mA	480mOhm Max	0.156" Dia x 0.375" L (3.96mm x 9.53mm)	Axial	View PDF
511-26F Delevan	1.6 µH	610 mA	600mOhm Max	0.156" Dia x 0.375" L (3.96mm x 9.53mm)	Axial	View PDF
511-28F Delevan	2 µH	530 mA	800mOhm Max	0.156" Dia x 0.375" L (3.96mm x 9.53mm)	Axial	View PDF
511-2F Delevan	160 nH	2.37 A	40mOhm Max	0.156" Dia x 0.375" L (3.96mm x 9.53mm)	Axial	View PDF
511-30F Delevan	2.4 µH	450 mA	1.1Ohm Max	0.156" Dia x 0.375" L (3.96mm x 9.53mm)	Axial	View PDF
511-32F Delevan	3 µH	355 mA	1.8Ohm Max	0.156" Dia x 0.375" L (3.96mm x 9.53mm)	Axial	View PDF
511-34F Delevan	3.6 µH	325 mA	2.15Ohm Max	0.156" Dia x 0.375" L (3.96mm x 9.53mm)	Axial	View PDF
511-36F Delevan	4.3 µH	305 mA	2.4Ohm Max	0.156" Dia x 0.375" L (3.96mm x 9.53mm)	Axial	View PDF
511-38F Delevan	5.1 µH	570 mA	360mOhm Max	0.156" Dia x 0.375" L (3.96mm x 9.53mm)	Axial	View PDF
511-3F Delevan	180 nH	2.285 A	43mOhm Max	0.156" Dia x 0.375" L (3.96mm x 9.53mm)	Axial	View PDF
511-40F Delevan	6.2 µH	455 mA	470mOhm Max	0.156" Dia x 0.375" L (3.96mm x 9.53mm)	Axial	View PDF
511-42F Delevan	7.5 µH	420 mA	550mOhm Max	0.156" Dia x 0.375" L (3.96mm x 9.53mm)	Axial	View PDF
511-44F Delevan	9.1 µH	350 mA	800mOhm Max	0.156" Dia x 0.375" L (3.96mm x 9.53mm)	Axial	View PDF
511-46F Delevan	11 µH	310 mA	1.05Ohm Max	0.156" Dia x 0.375" L (3.96mm x 9.53mm)	Axial	View PDF
511-48F Delevan	13 µH	285 mA	1.2Ohm Max	0.156" Dia x 0.375" L (3.96mm x 9.53mm)	Axial	View PDF
511-4F Delevan	200 nH	2.185 A	47mOhm Max	0.156" Dia x 0.375" L (3.96mm x 9.53mm)	Axial	View PDF
511-50F Delevan	16 µH	230 mA	1.8Ohm Max	0.156" Dia x 0.375" L (3.96mm x 9.53mm)	Axial	View PDF
